RC14JB2M20
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

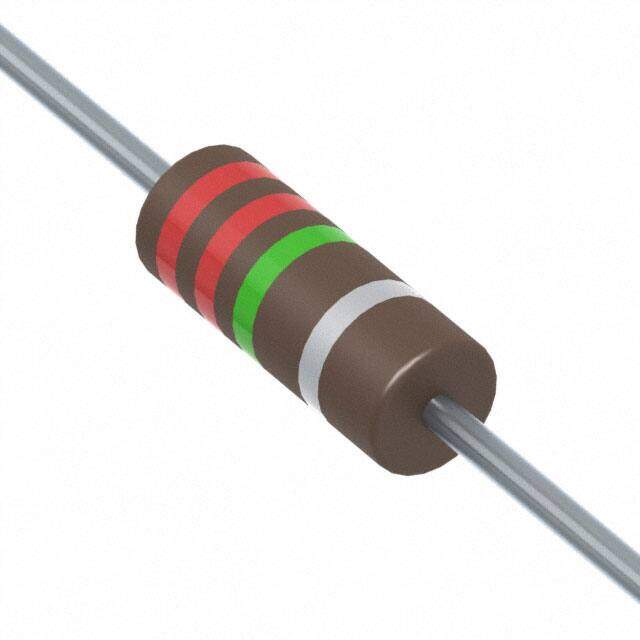

Axial FIXED RESISTOR RC 0.094Diax0.248L 2.40mmx6.30mm 0.25W 1/4W 2.2MOhm 1734ppm/C
PDF
/
Inventory: 3171
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Contact Plating Tin
Mount Axial, Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2000
Series RC
Size / Dimension 0.094Diax0.248L 2.40mmx6.30mm
Tolerance ±5%
JESD-609 Code e3
Feature Non-Inductive, Pulse Withstanding
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Temperature Coefficient 1734 ppm/°C
Resistance 2.2MOhm
Composition Carbon Composition
Power (Watts) 0.25W 1/4W
Max Power Dissipation 250mW
Construction Tubular
Resistor Type FIXED RESISTOR
Lead Length 30mm
Dimensions
Diameter 2.4mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
