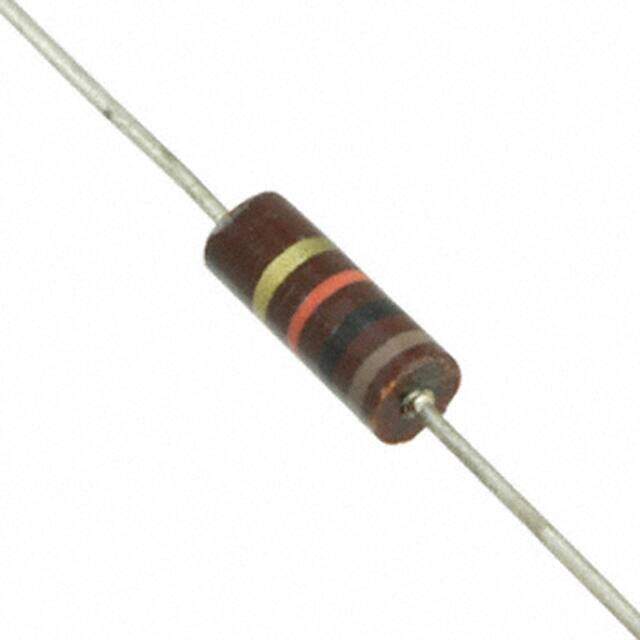

RC12JB3M30
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR RC 0.142Diax0.374L 3.60mmx9.50mm 0.5W 1/2W 3.3MOhm 1734ppm/C
PDF
/
Inventory: 1364
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
HTS Code 8533.10.00.60
Max Power Dissipation 500mW
Construction Tubular
Resistor Type FIXED RESISTOR
Military Standard Not
Rated Power Dissipation (P) 0.5W
Working Voltage 350V
Power (Watts) 0.5W 1/2W
Composition Carbon Composition
Resistance 3.3MOhm
Temperature Coefficient 1734 ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Non-Inductive, Pulse Withstanding
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.142Diax0.374L 3.60mmx9.50mm
Series RC
Published 2000
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Diameter 3.6mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Axial, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 111 Weeks
