CFM12JA270R
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

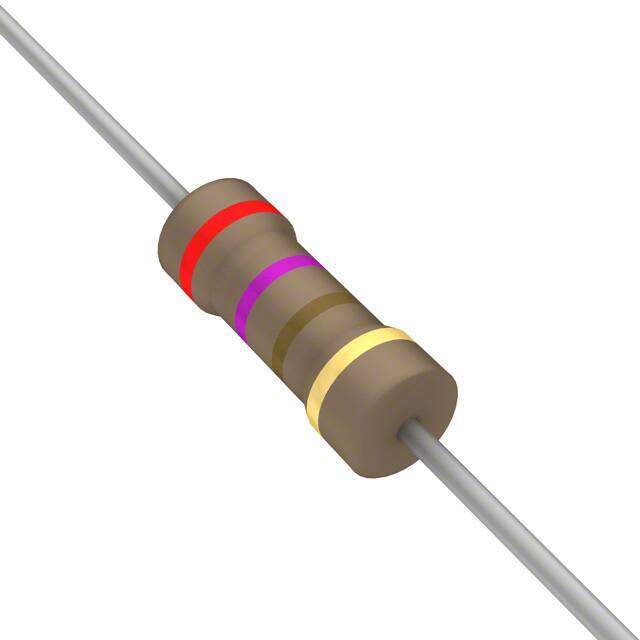

Axial FIXED RESISTOR CFM 0.091Diax0.256L 2.30mmx6.50mm 0.5W 1/2W 270Ohm 0/ -400ppm/C
PDF
/
Inventory: 6557
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Plating Tin
Mount Axial, Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Box (TB)
Published 2009
Series CFM
Size / Dimension 0.091Diax0.256L 2.30mmx6.50mm
Tolerance ±5%
JESD-609 Code e3
Feature Flame Retardant Coating, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient 0/ -400ppm/°C
Resistance 270Ohm
Composition Carbon Film
Power (Watts) 0.5W 1/2W
Power Rating 500mW
Packing Method AMMO PACK
Max Power Dissipation 500mW
Construction Tubular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 0.5W
Working Voltage 350V
Dimensions
Diameter 2.3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
