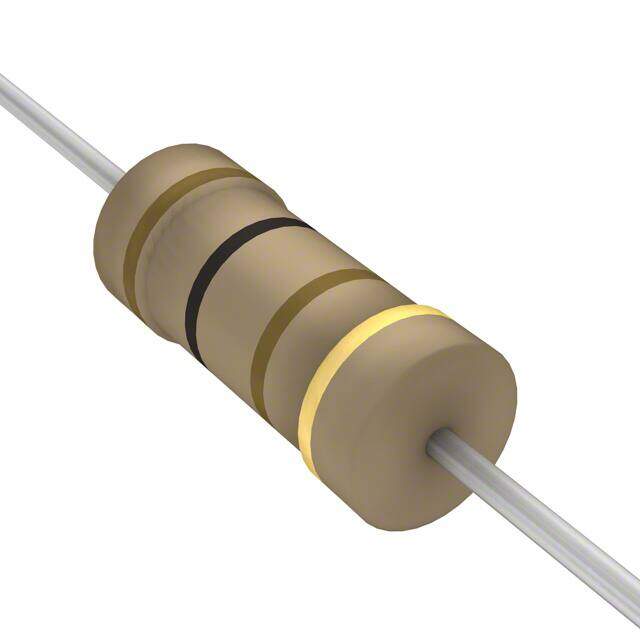

CF1JT100R
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR CF 0.177Diax0.433L 4.50mmx11.00mm 1W 100Ohm 0/ -400ppm/C
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
≥10 USD $0.2508
≥100 USD $0.19184
≥500 USD $0.139216
≥1000 USD $0.097944
≥3000 USD $0.0792
Inventory: 8077
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Plating Tin
Mount Axial, Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Published 2012
Series CF
Size / Dimension 0.177Diax0.433L 4.50mmx11.00mm
Tolerance ±5%
JESD-609 Code e3
Feature Flame Retardant Coating, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient 0/ -400ppm/°C
Resistance 100Ohm
Composition Carbon Film
HTS Code 8533.10.00.65
Power Rating 1W
Packing Method TR
Max Power Dissipation 1W
Construction Tubular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 1W
Working Voltage 500V
Dimensions
Diameter 4.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
