CF14JA18K0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

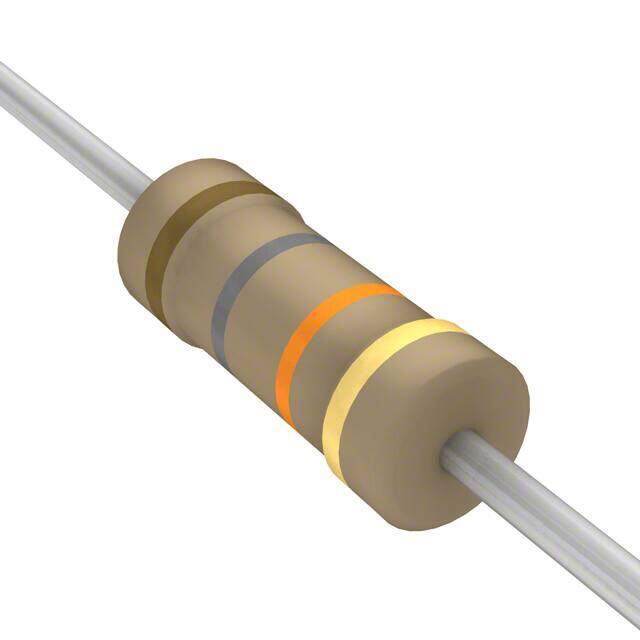

Axial FIXED RESISTOR CF 0.091Diax0.236L 2.30mmx6.00mm 0.25W 1/4W 18kOhm 0/ -500ppm/C
PDF
/
Inventory: 7663
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Diameter 2.3mm
Technical
Working Voltage 350V
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 250mW
Packing Method AMMO PACK
Power Rating 250mW
HTS Code 8533.10.00.65
Power (Watts) 0.25W 1/4W
Composition Carbon Film
Resistance 18kOhm
Temperature Coefficient 0/ -500ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Retardant Coating, Safety
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.091Diax0.236L 2.30mmx6.00mm
Series CF
Published 2009
Packaging Tape & Box (TB)
Operating Temperature -55°C~155°C
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Axial, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 20 Weeks
