CF14JA10M0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

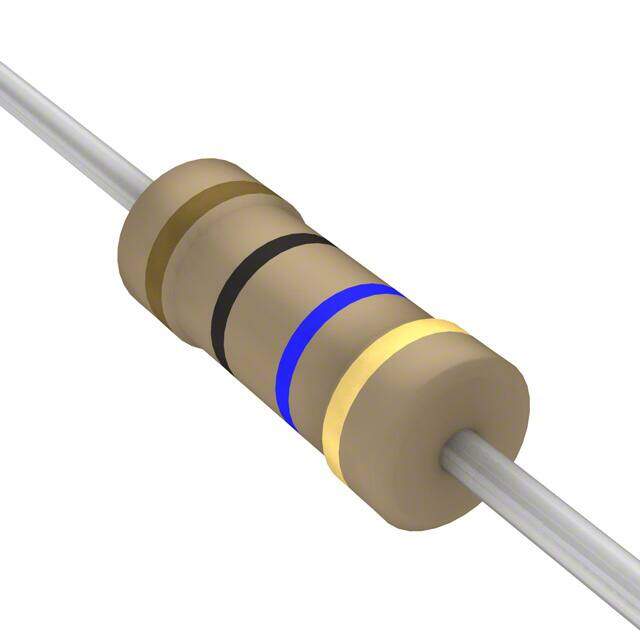

Axial FIXED RESISTOR CF 0.091Diax0.236L 2.30mmx6.00mm 0.25W 1/4W 10MOhm 0/ -1500ppm/C
PDF
/
Buying Options
Total Price: USD $0
Unit Price: USD $0.004181
≥1 USD $0.004181
≥200 USD $0.001618
≥500 USD $0.001561
≥1000 USD $0.001533
Inventory: 8296
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Plating Tin
Mount Axial, Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Box (TB)
Published 2009
Series CF
Size / Dimension 0.091Diax0.236L 2.30mmx6.00mm
Tolerance ±5%
JESD-609 Code e3
Feature Flame Retardant Coating, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient 0/ -1500ppm/°C
Resistance 10MOhm
Composition Carbon Film
Power (Watts) 0.25W 1/4W
Power Rating 250mW
Packing Method AMMO PACK
Max Power Dissipation 250mW
Construction Tubular
Resistor Type FIXED RESISTOR
Working Voltage 350V
Dimensions
Diameter 2.3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
