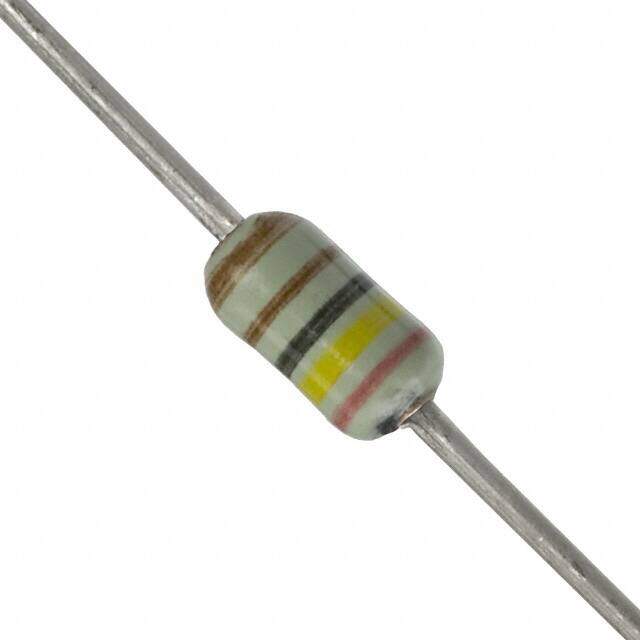

ERO-S2PHF2401
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR ERO 0.067Diax0.126L 1.70mmx3.20mm 0.25W 1/4W 2.4kOhm ±50ppm/C
PDF
/
Inventory: 8104
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case Axial
Surface Mount NO
Terminal Shape WIRE
Mounting Feature THROUGH HOLE MOUNT
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Box (TB)
Published 2006
Series ERO
Size / Dimension 0.067Diax0.126L 1.70mmx3.20mm
Tolerance ±1%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±50ppm/°C
Resistance 2.4kOhm
Terminal Finish Tin (Sn)
Composition Metal Film
Power (Watts) 0.25W 1/4W
Voltage - Rated 500V
Subcategory Fixed Resistors
Power Rating 250mW
Voltage - Rated DC 250V
Packing Method AMMO PACK
Max Power Dissipation 250mW
Resistor Type FIXED RESISTOR
Reach Compliance Code unknown
Lead Length 30mm
Lead Diameter 450 μm
Dimensions
Diameter 1.7mm
Compliance
RoHS Status RoHS Compliant
