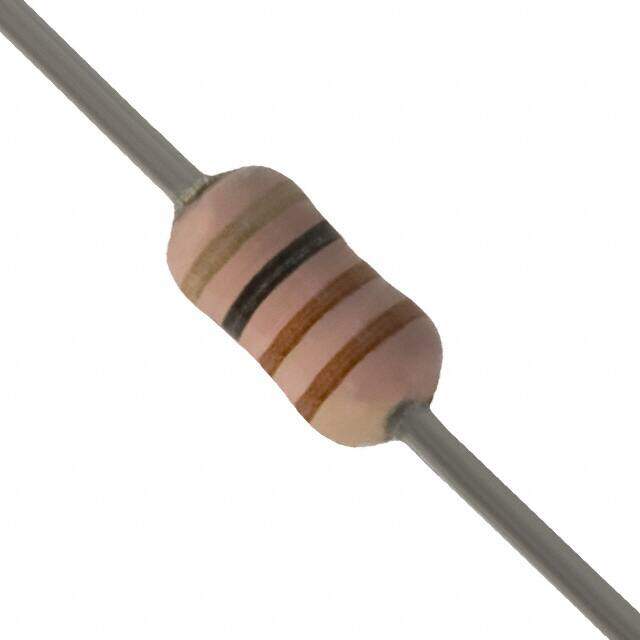

ERD-S2TJ110V
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR ERDS2 0.067Diax0.126L 1.70mmx3.20mm 0.25W 1/4W 11Ohm -150/ -350ppm/C
PDF
/
Inventory: 5943
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Diameter 1.7mm
Technical
Lead Diameter 450 μm
Lead Length 20mm
Reach Compliance Code unknown
Resistor Type FIXED RESISTOR
Max Power Dissipation 250mW
Packing Method AMMO PACK
Voltage - Rated DC 250V
Power Rating 250mW
Subcategory Fixed Resistors
HTS Code 8533.10.00.65
Voltage - Rated 250V
Power (Watts) 0.25W 1/4W
Composition Carbon Film
Terminal Finish Tin (Sn)
Resistance 11Ohm
Temperature Coefficient -150/ -350ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.067Diax0.126L 1.70mmx3.20mm
Series ERDS2
Published 2000
Packaging Tape & Box (TB)
Operating Temperature -55°C~155°C
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Through Hole
