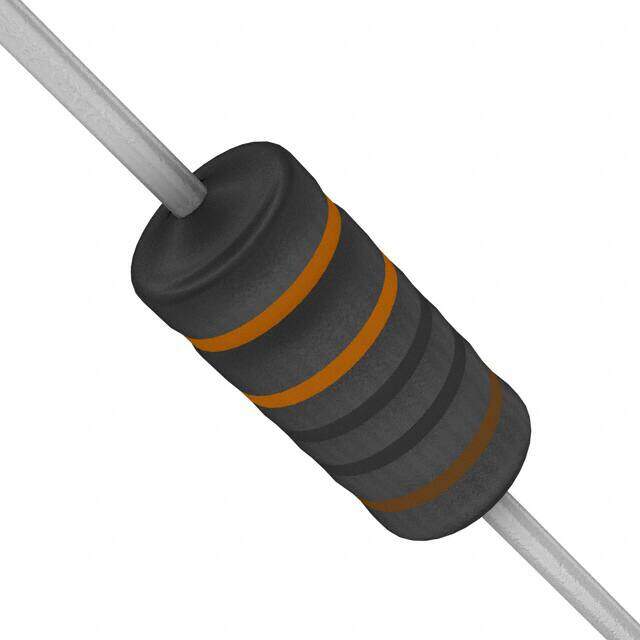

WHB330FET
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR WH 0.130Diax0.276L 3.30mmx7.00mm 1W 330Ohm ±20ppm/C
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2144
≥1 USD $1.2144
≥10 USD $1.01904
≥100 USD $0.988064
≥500 USD $0.901296
≥1000 USD $0.73832
≥3000 USD $0.658592
Inventory: 996
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Package / Case Axial
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Series WH
Size / Dimension 0.130Diax0.276L 3.30mmx7.00mm
Tolerance ±1%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±20ppm/°C
Resistance 330Ohm
Terminal Finish Tin (Sn)
Composition Wirewound
Additional Feature PRECISION
Subcategory Fixed Resistors
Power Rating 1W
Voltage - Rated DC 1kV
Packing Method TR, 11 INCH
Max Power Dissipation 1W
Technology WIRE WOUND
Construction Epoxy Molded
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 1W
Lead Diameter 600 μm
Dimensions
Diameter 3.3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
