SM103035004FE
RoHS
/
Package Radial
Category Resistors / Through Hole Resistors
Description

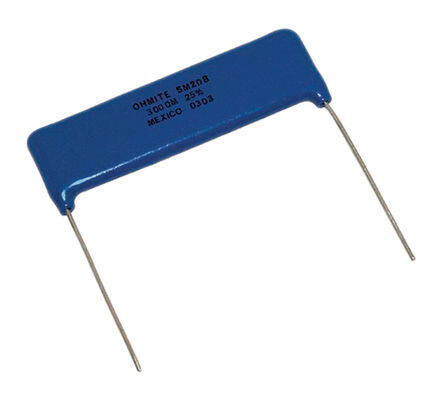

Radial through hole resistor 1% 25ppm/C 5MOhm 1.25W
PDF
/
Inventory: 5005
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.54mm
Length 21.08mm
Height 8.64mm
Technical
Lead Diameter 813 μm
Lead Pitch 15.24mm
Voltage - Rated DC 7.5kV
Power Rating 1.25W
Composition Thick Film
Min Operating Temperature -55°C
Max Operating Temperature 110°C
Resistance 5MOhm
Temperature Coefficient 25 ppm/°C
Tolerance 1%
Published 2011
Packaging Bulk
Physical
Package / Case Radial
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
