SM101031003FE
RoHS
/
Package Radial
Category Resistors / Through Hole Resistors
Description

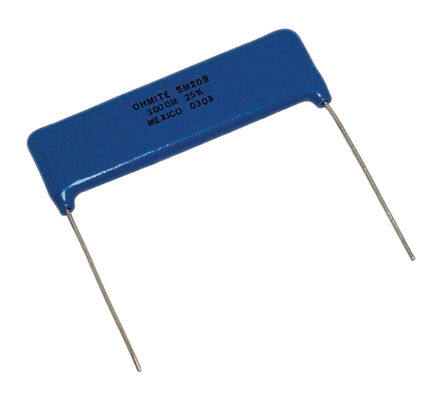

Radial through hole resistor 1% 25ppm/C 100kOhm 500mW
PDF
/
Inventory: 6267
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Package / Case Radial
Technical
Packaging Bulk
Published 2011
Tolerance 1%
Part Status Active
Number of Terminations 2
Temperature Coefficient 25 ppm/°C
Resistance 100kOhm
Max Operating Temperature 110°C
Min Operating Temperature -55°C
Composition Thick Film
Power Rating 500mW
Voltage - Rated DC 2kV
Terminal Pitch 5.08mm
Lead Pitch 5.08mm
Lead Diameter 635 μm
Power Dissipation-Max 500mW
Dimensions
Height 8.636mm
Length 8.382mm
Width 2.54mm
Compliance
RoHS Status RoHS Compliant
