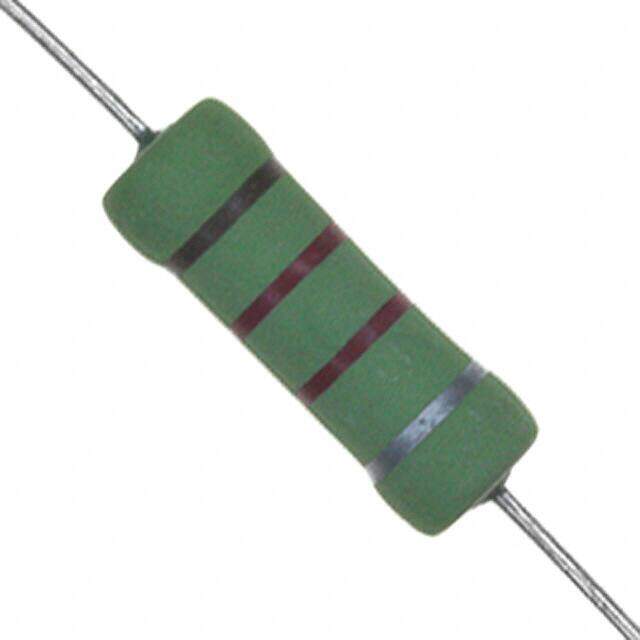

OY122KE
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR OY 0.276Diax0.748L 7.00mmx19.00mm 2W 1.2kOhm -1000/ -1600ppm/C
PDF
/
Buying Options
Total Price: USD $2.73
Unit Price: USD $2.728
≥1 USD $2.728
≥10 USD $2.111824
≥100 USD $1.751024
≥500 USD $1.143886
≥1000 USD $1.108686
Inventory: 451
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Diameter 7mm
Technical
Wire/Cable Diameter 787.4 μm
Lead Diameter 800 μm
Lead Length 38mm
Rated Power Dissipation (P) 2W
Resistor Type FIXED RESISTOR
Construction Cylindrical
Max Power Dissipation 2W
Packing Method TR, 13 INCH
Voltage - Rated DC 400V
Power Rating 2W
Subcategory Fixed Resistors
Voltage - Rated 400V
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 1.2kOhm
Temperature Coefficient -1000/ -1600ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Moisture Resistant, Pulse Withstanding
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.276Diax0.748L 7.00mmx19.00mm
Series OY
Published 2010
Packaging Bulk
Operating Temperature -40°C~220°C
Physical
Material Ceramic
Terminal Shape WIRE
Package / Case Axial
Mount Through Hole
Supply Chain
Factory Lead Time 22 Weeks
Alternative Model
