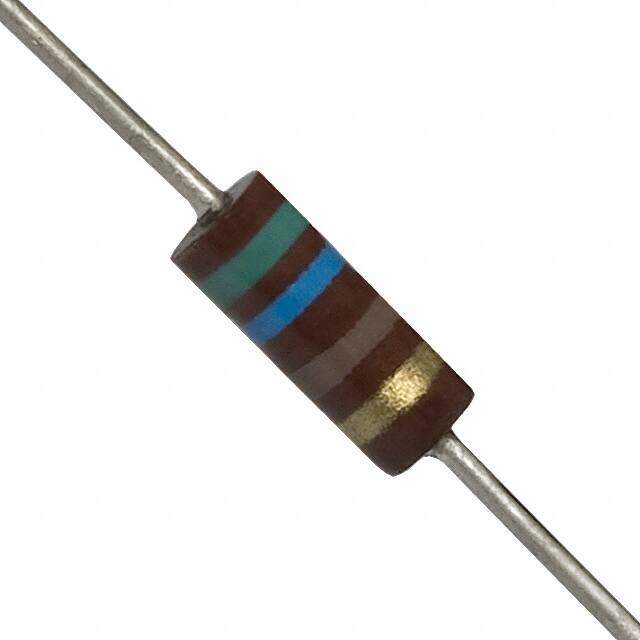

OD561J
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR Little Demon? OD 0.098Diax0.276L 2.50mmx7.00mm 0.25W 1/4W 560Ohm ±5%
PDF
/
Inventory: 1853
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Packaging Strip
Published 2016
Series Little Demon? OD
Size / Dimension 0.098Diax0.276L 2.50mmx7.00mm
Tolerance ±5%
Feature Pulse Withstanding
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Resistance 560Ohm
Max Operating Temperature 130°C
Min Operating Temperature -70°C
Composition Carbon Composition
Power (Watts) 0.25W 1/4W
Voltage - Rated 250V
HTS Code 8533.10.00.60
Subcategory Fixed Resistors
Power Rating 250mW
Voltage - Rated DC 250V
Packing Method AMMO PACK; TR, 10 INCH
Max Power Dissipation 250mW
Construction Phenolic
Resistor Type FIXED RESISTOR
Lead Pitch 600μm
Dimensions
Diameter 2.5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
