OA473KE
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description

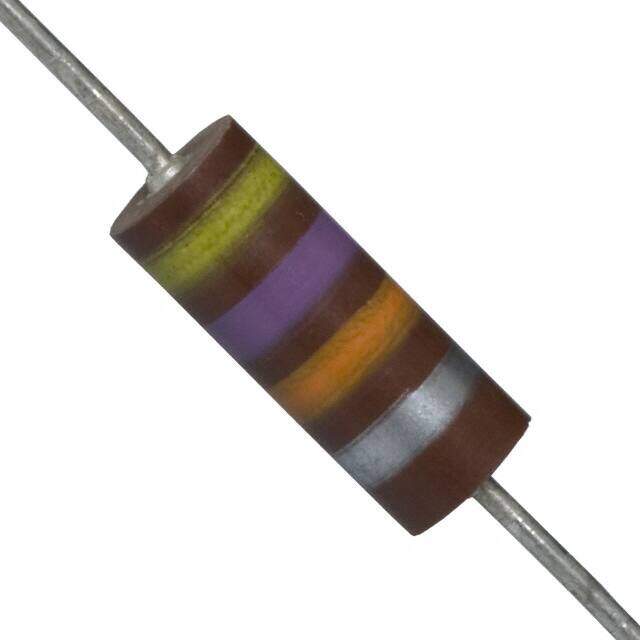

Axial FIXED RESISTOR Little Demon? OA 0.236Diax0.591L 6.00mmx15.00mm 1W 47kOhm ±10%
PDF
/
Inventory: 1331
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Packaging Bulk
Published 2005
Series Little Demon? OA
Size / Dimension 0.236Diax0.591L 6.00mmx15.00mm
Tolerance ±10%
JESD-609 Code e3
Feature Pulse Withstanding
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Resistance 47kOhm
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 130°C
Min Operating Temperature -70°C
Composition Carbon Composition
Voltage - Rated 500V
HTS Code 8533.10.00.60
Subcategory FIXED RESISTOR
Power Rating 1W
Voltage - Rated DC 1kV
Max Power Dissipation 1W
Construction Tubular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 1W
Lead Pitch 920μm
Lead Length 30mm
Lead Diameter 920 μm
Wire/Cable Diameter 889 μm
Dimensions
Diameter 6mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
