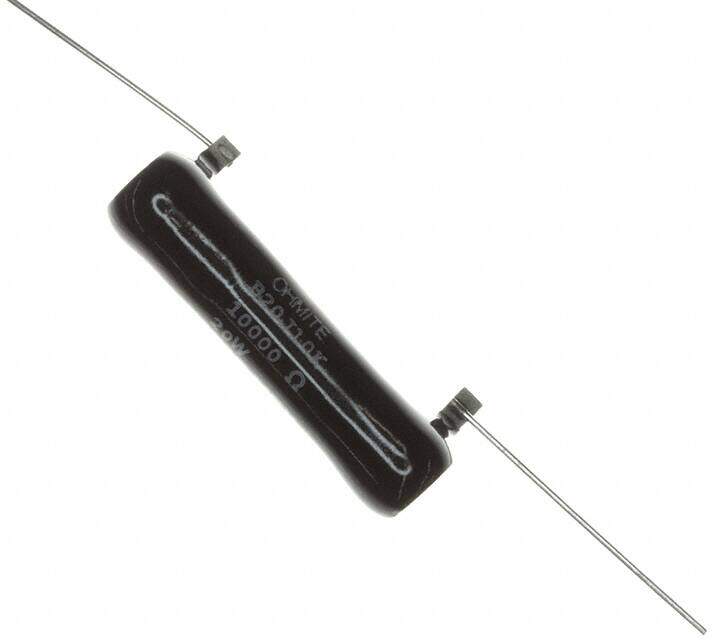

B20J10K
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR Brown Devil? 200 0.437Diax2.000L 11.11mmx50.80mm 20W 10kOhm ±260ppm/C
PDF
/
Inventory: 1993
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Package / Case Axial
Surface Mount NO
Mounting Feature THROUGH HOLE MOUNT
Technical
Packaging Bulk
Published 2012
Series Brown Devil? 200
Size / Dimension 0.437Diax2.000L 11.11mmx50.80mm
Tolerance ±5%
Feature Flame Retardant Coating, Safety
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±260ppm/°C
Resistance 10kOhm
Max Operating Temperature 350°C
Min Operating Temperature 25°C
Composition Wirewound
Voltage - Rated 750V
Subcategory Fixed Resistors
Power Rating 20W
Voltage - Rated DC 750V
Max Power Dissipation 20W
Technology WIRE WOUND
Construction All-Welded
Resistor Type FIXED RESISTOR
Lead Length 38.1mm
Dimensions
Diameter 11.11mm
Compliance
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
