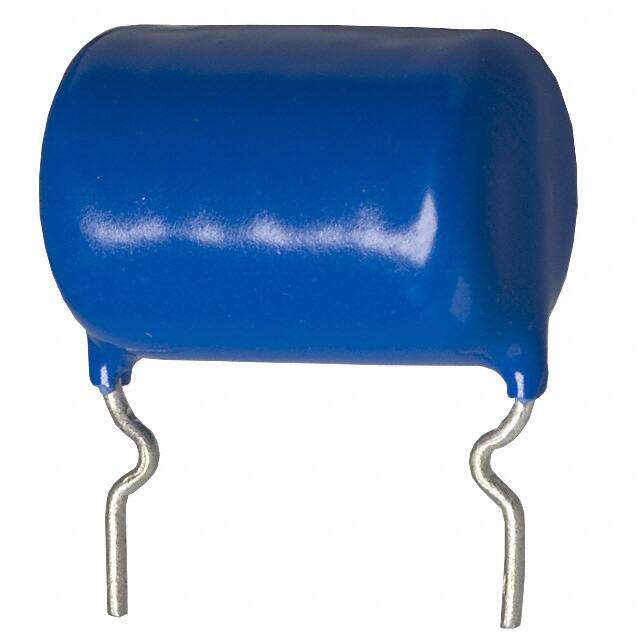

AW560K
RoHS
/
Package Radial
Category Resistors / Through Hole Resistors
Description
Radial FIXED RESISTOR PulsEater? A 0.787Lx0.512W 20.00mmx13.00mm 2.5W 56Ohm 100ppm/C
PDF
/
Inventory: 7119
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case Radial
Surface Mount NO
Terminal Shape WIRE
Mounting Feature THROUGH HOLE MOUNT
Technical
Operating Temperature -55°C~150°C
Packaging Bulk
Published 2013
Series PulsEater? A
Size / Dimension 0.787Lx0.512W 20.00mmx13.00mm
Tolerance ±10%
JESD-609 Code e0
Feature Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient 100 ppm/°C
Resistance 56Ohm
Terminal Finish Tin/Lead (Sn/Pb)
Composition Ceramic
Voltage - Rated 1.5kV
Subcategory Fixed Resistors
Power Rating 2.5W
Voltage - Rated DC 1.5kV
Max Power Dissipation 2.5W
Construction Epoxy Coating
Resistor Type FIXED RESISTOR
Reach Compliance Code unknown
Lead Pitch 17.5mm
Lead Length 4.7mm
Dimensions
Height 18.9992mm
Height Seated (Max) 0.866 22.00mm
Compliance
RoHS Status Non-RoHS Compliant
