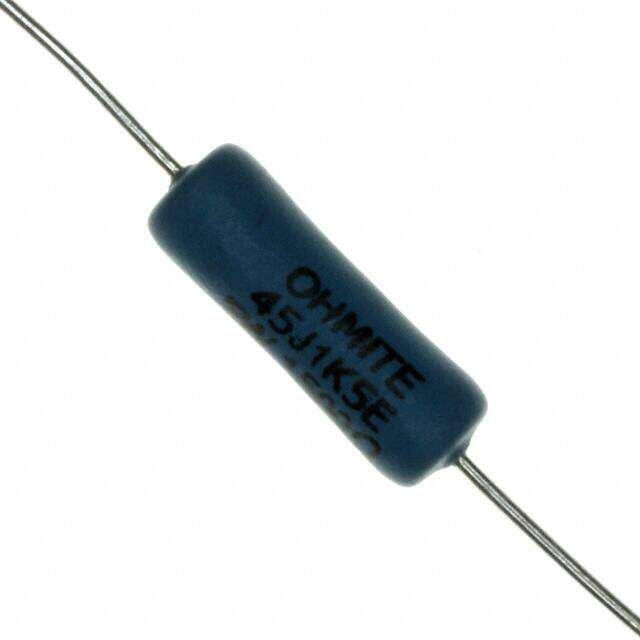

45J1K5E
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR Ohmicone? 40 0.343Diax0.937L 8.70mmx23.80mm 5W 1.5kOhm ±20ppm/C
PDF
/
Buying Options
Total Price: USD $2.39
Unit Price: USD $2.3936
≥1 USD $2.3936
≥10 USD $1.971904
≥100 USD $1.538768
≥500 USD $1.005233
≥1000 USD $0.974301
Inventory: 329
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Package / Case Axial
Surface Mount NO
Mounting Feature THROUGH HOLE MOUNT
Technical
Packaging Bulk
Published 2005
Series Ωicone? 40
Size / Dimension 0.343Diax0.937L 8.70mmx23.80mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±20ppm/°C
Resistance 1.5kOhm
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Composition Wirewound
Voltage - Rated 460V
Additional Feature NON-INDUCTIVE AVAILABLE
Subcategory FIXED RESISTOR
Power Rating 5W
Voltage - Rated DC 460V
Max Power Dissipation 5W
Technology WIRE WOUND
Construction All-Welded
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 5W
Lead Length 38.1mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
