45F22R
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR Ohmicone? 40 0.343Diax0.937L 8.70mmx23.80mm 5W 22Ohm ±20ppm/C
PDF
/
Inventory: 6862
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Package / Case Axial
Material Ceramic
Technical
Packaging Bulk
Published 2014
Series Ωicone? 40
Size / Dimension 0.343Diax0.937L 8.70mmx23.80mm
Tolerance ±1%
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±20ppm/°C
Resistance 22Ohm
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 275°C
Min Operating Temperature 25°C
Composition Wirewound
Voltage - Rated 460V
Subcategory FIXED RESISTOR
Power Rating 5W
Voltage - Rated DC 460V
Max Power Dissipation 5W
Technology WIRE WOUND
Construction All-Welded
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 5W
Lead Length 38.1mm
Wire/Cable Gauge 18 AWG
Dimensions
Diameter 8.7mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead

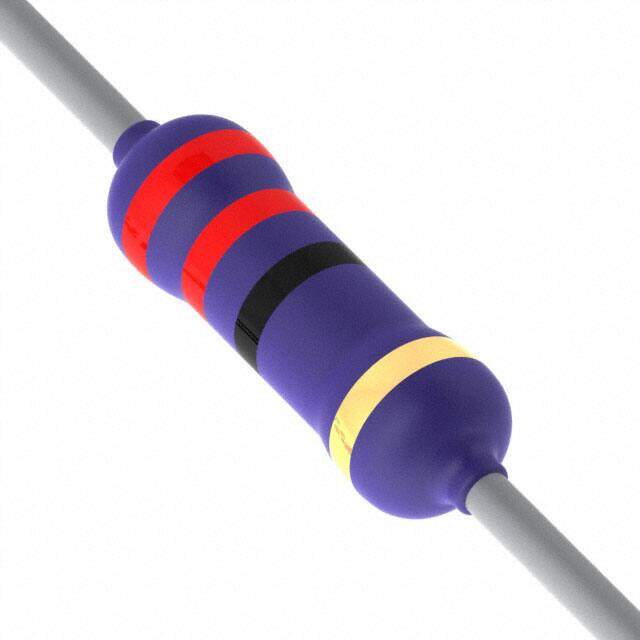

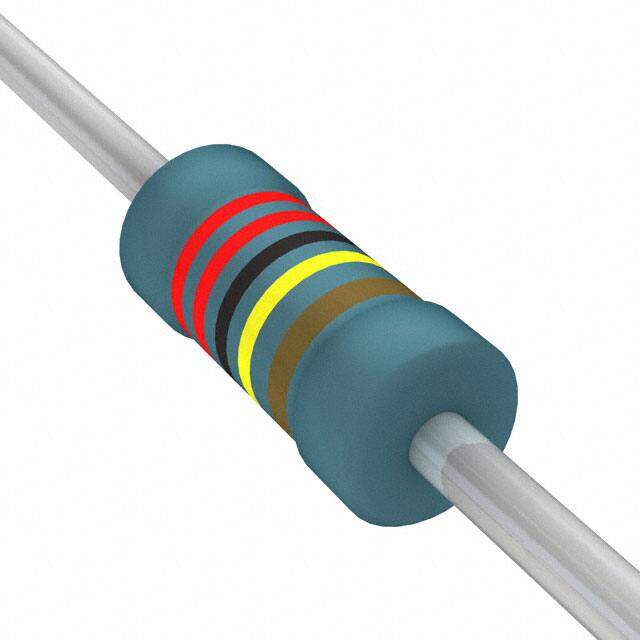

Alternative Model
