43F270
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description

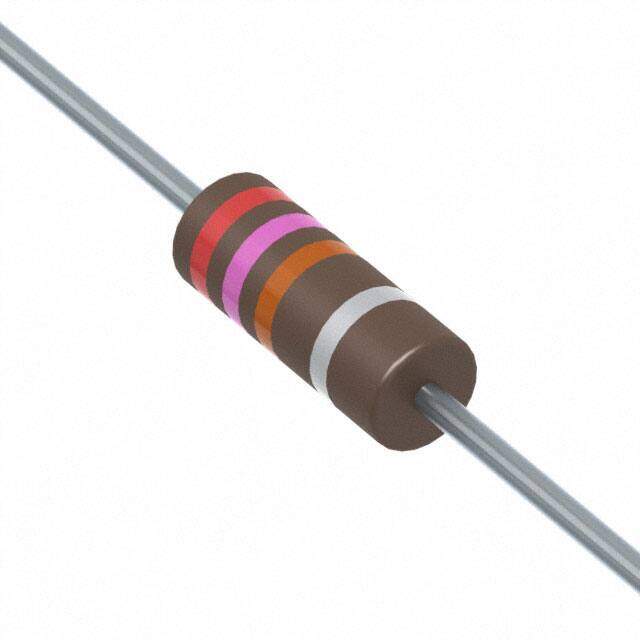

Axial FIXED RESISTOR Ohmicone? 40 0.220Diax0.594L 5.60mmx15.10mm 3W 270Ohm ±20ppm/C
PDF
/
Inventory: 2856
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Package / Case Axial
Material Ceramic
Technical
Packaging Bulk
Published 2005
Series Ωicone? 40
Size / Dimension 0.220Diax0.594L 5.60mmx15.10mm
Tolerance ±1%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±20ppm/°C
Resistance 270Ohm
Max Operating Temperature 275°C
Min Operating Temperature 25°C
Composition Wirewound
Voltage - Rated 200V
Subcategory FIXED RESISTOR
Power Rating 3W
Voltage - Rated DC 200V
Max Power Dissipation 3W
Technology WIRE WOUND
Construction All-Welded
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 3W
Lead Length 38.1mm
Wire/Cable Gauge 20 AWG
Dimensions
Diameter 5.5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
