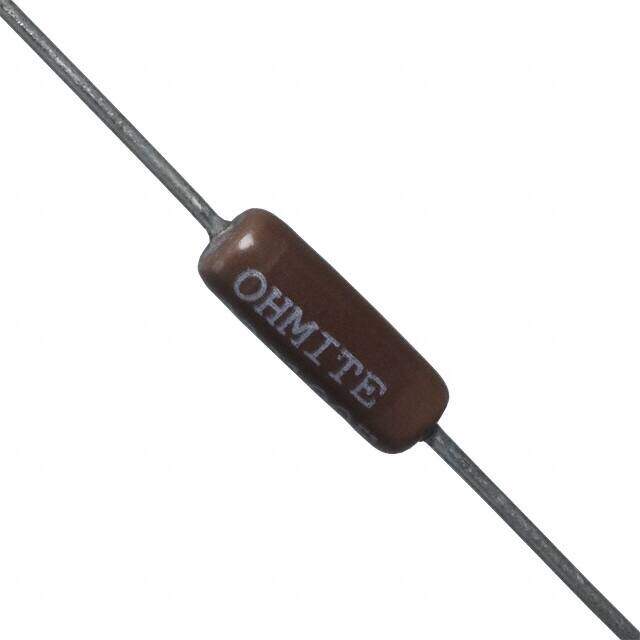

23JR13E
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR 20 0.220Diax0.516L 5.60mmx13.10mm 3W 130mOhm 50ppm/C
PDF
/
Inventory: 7005
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Package / Case Axial
Technical
Packaging Bulk
Published 2011
Series 20
Size / Dimension 0.220Diax0.516L 5.60mmx13.10mm
Tolerance ±5%
JESD-609 Code e1
Feature Flame Retardant Coating, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient 50 ppm/°C
Resistance 130mOhm
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 350°C
Min Operating Temperature 25°C
Composition Wirewound
Voltage - Rated 135V
Subcategory FIXED RESISTOR
Power Rating 3W
Voltage - Rated DC 135V
Max Power Dissipation 3W
Technology WIRE WOUND
Construction All-Welded
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 3W
Lead Length 38.1mm
Lead Diameter 0.813 mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
