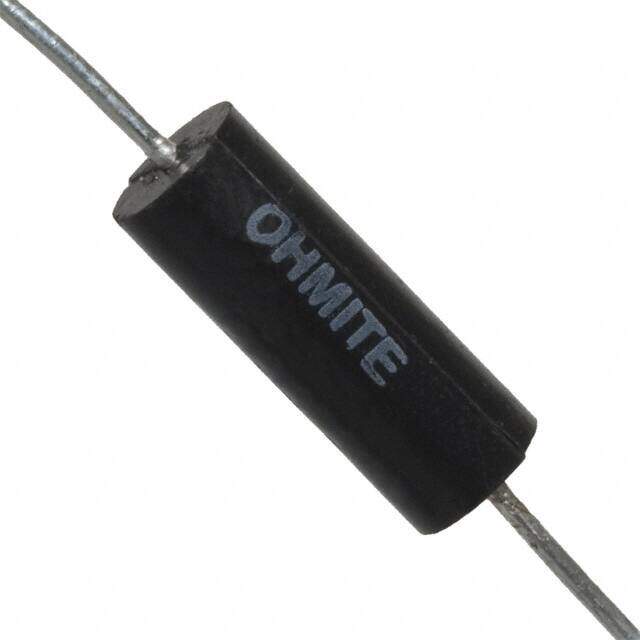

13FR070
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR 10 0.205Diax0.571L 5.20mmx14.50mm 3W 70mOhm 50ppm/C
PDF
/
Inventory: 5812
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Operating Temperature -55°C~275°C
Packaging Bulk
Published 2008
Series 10
Size / Dimension 0.205Diax0.571L 5.20mmx14.50mm
Tolerance ±1%
JESD-609 Code e0
Feature Current Sense, Non-Inductive
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient 50 ppm/°C
Resistance 70mOhm
Terminal Finish Tin/Lead (Sn/Pb)
Composition Metal Element
Voltage - Rated 100mV
Subcategory Fixed Resistors
Power Rating 3W
Voltage - Rated DC 1kV
Max Power Dissipation 3W
Technology WIRE WOUND
Construction Cylindrical
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 3W
Lead Length 39.7mm
Lead Diameter 0.81 mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Alternative Model
