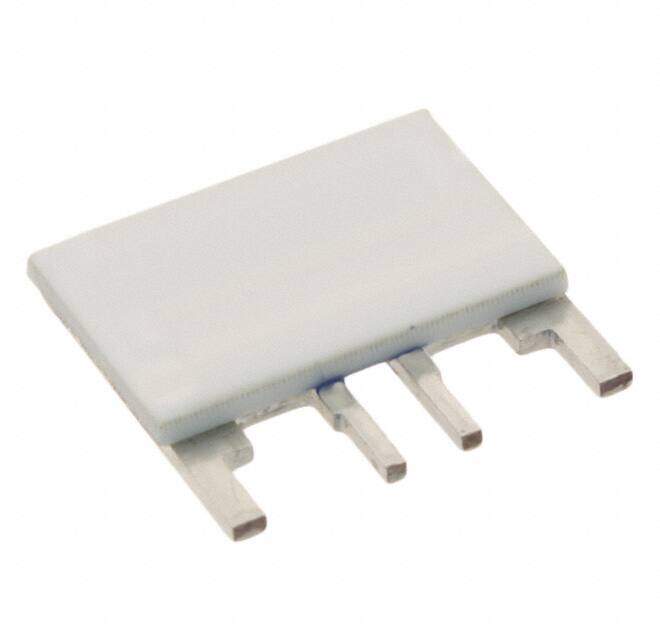

SR20-0.008-1%
RoHS
RoHS compliant
RoHS compliantPackage SR20
Category Resistors / Through Hole Resistors
Description
SR20 FIXED RESISTOR SR 0.565Lx0.090W 14.35mmx2.29mm 2W 8mOhm 0/ +200ppm/C
PDF
/
Buying Options
Total Price: USD $8.85
Unit Price: USD $8.8528
≥1 USD $8.8528
≥10 USD $7.8936
≥100 USD $7.74576
≥500 USD $6.823696
≥1000 USD $5.606568
Inventory: 599
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.415 10.54mm
Height 10.541mm
Technical
Size Code 5609
Lead Length 3.17mm
Lead Pitch 2.54mm
Rated Power Dissipation (P) 2W
Resistor Type FIXED RESISTOR
Construction Rectangular
Depth 2.29mm
Max Power Dissipation 2W
Power Rating 2W
Subcategory Fixed Resistors
Additional Feature NON-INDUCTIVE, PRECISION
Composition Metal Element
Resistance 8mOhm
Temperature Coefficient 0/ +200ppm/°C
ECCN Code EAR99
Termination Radial
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Pbfree Code yes
Feature Current Sense, Moisture Resistant, Non-Inductive
Tolerance ±1%
Size / Dimension 0.565Lx0.090W 14.35mmx2.29mm
Series SR
Packaging Cut Tape (CT)
Operating Temperature -15°C~105°C
Physical
Mounting Feature THROUGH HOLE MOUNT
Terminal Shape FLAT
Surface Mount NO
Package / Case SR20
