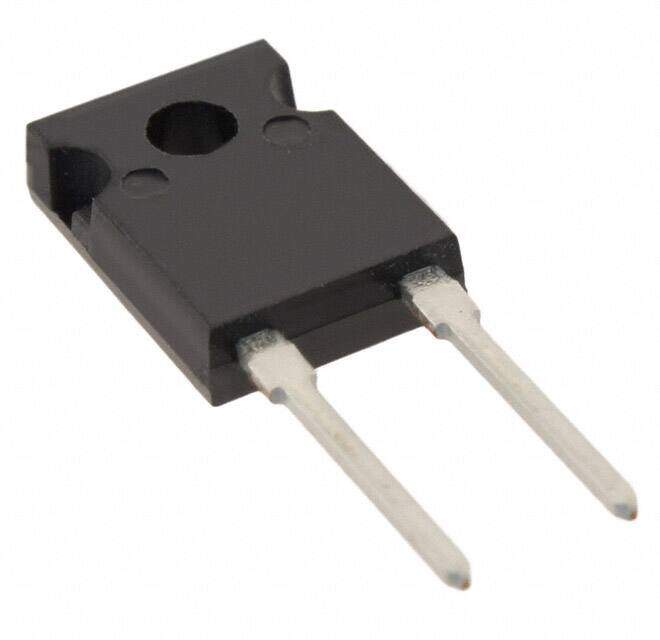

MP915-0.030-5%
RoHS
RoHS compliant
RoHS compliantPackage TO-126-2
Category Resistors / Through Hole Resistors
Description
TO-126-2 Kool-Pak?MP900 0.320Lx0.110W 8.12mmx2.79mm 15W 30mOhm 0/ +300ppm/C
PDF
/
Buying Options
Total Price: USD $5.25
Unit Price: USD $5.25418
≥1 USD $5.25418
≥10 USD $4.956772
≥100 USD $4.676198
≥500 USD $4.411516
≥1000 USD $4.161793
Inventory: 1179
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Package / Case TO-126-2
Technical
Operating Temperature -55°C~150°C
Packaging Tube
Series Kool-Pak?MP900
Size / Dimension 0.320Lx0.110W 8.12mmx2.79mm
Tolerance ±5%
Feature Moisture Resistant, Non-Inductive
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
Temperature Coefficient 0/ +300ppm/°C
Resistance 30mOhm
Composition Thick Film
Voltage - Rated 200V
Power Rating 15W
Max Power Dissipation 15W
Lead Pitch 5.08mm
Lead Diameter 760 μm
Dimensions
Height 11.43mm
Height Seated (Max) 0.450 11.44mm
Compliance
RoHS Status ROHS3 Compliant
