MP820-2.00K-1%
RoHS
RoHS compliant
RoHS compliantPackage TO-220-2 Full Pack
Category Resistors / Through Hole Resistors
Description

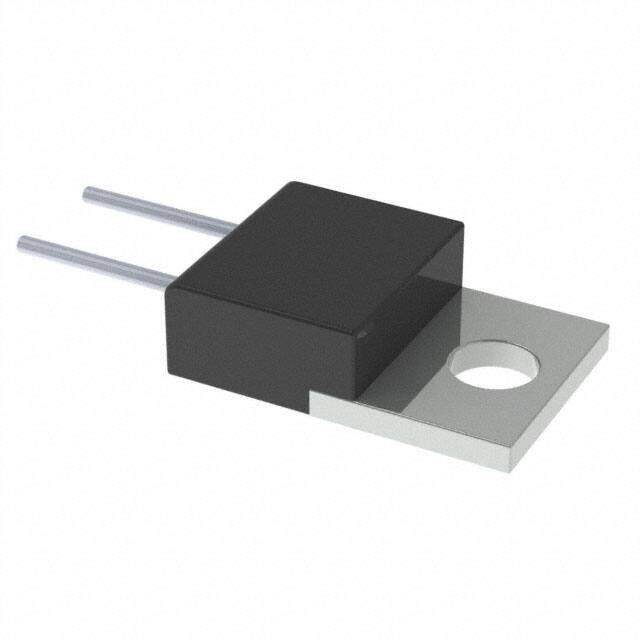

TO-220-2Full Pack FIXED RESISTOR Kool-Pak?MP800 0.400Lx0.175W 10.16mmx4.45mm 20W 2kOhm -20/ +50ppm/C
PDF
/
Buying Options
Total Price: USD $6.82
Unit Price: USD $6.816117
≥1 USD $6.816117
≥10 USD $6.430294
≥100 USD $6.066315
≥500 USD $5.722944
≥1000 USD $5.398997
Inventory: 1177
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Package / Case TO-220-2 Full Pack
Terminal Shape WIRE
Technical
Operating Temperature -55°C~175°C
Packaging Tube
Series Kool-Pak?MP800
Size / Dimension 0.400Lx0.175W 10.16mmx4.45mm
Tolerance ±1%
JESD-609 Code e3
Feature Moisture Resistant, Non-Inductive
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Temperature Coefficient -20/ +50ppm/°C
Resistance 2kOhm
Terminal Finish Matte Tin (Sn)
Composition Thick Film
Voltage - Rated 300V
Subcategory FIXED RESISTOR
Power Rating 20W
Voltage - Rated DC 300V
Max Power Dissipation 20W
Depth 4.45mm
Construction Rectangular
Resistor Type FIXED RESISTOR
Lead Pitch 5.08mm
Lead Length 13.7mm
Lead Diameter 810 μm
Dimensions
Height 14.73mm
Height Seated (Max) 0.590 14.99mm
Thickness 4.44mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
