P13-0123
RoHS
RoHS compliant
RoHS compliantPackage /
Category Test and Measurement / Test Probe Tips
Description

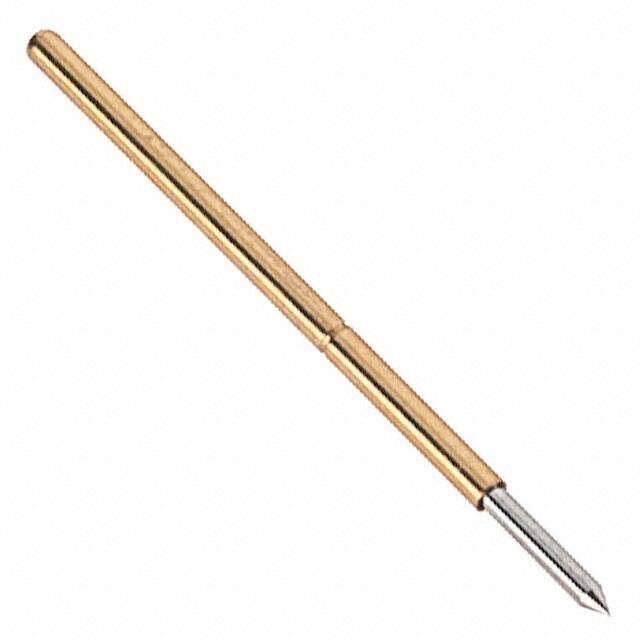

HARWIN - P13-0123 - Contact, Connector, Pointed, Spring Probe, 1.27 mm, 45° Spear, 3 A, 16.35 mm
PDF
/
Buying Options
Total Price: USD $3.8
Unit Price: USD $3.8016
≥1 USD $3.8016
≥10 USD $3.44784
≥100 USD $3.265856
≥500 USD $3.189824
≥1000 USD $3.037936
≥3000 USD $2.658163
Inventory: 1528
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper
Material Bronze
Material - Body Phosphor Bronze
Material - Tip Beryllium Copper, Gold Plated
Technical
Operating Temperature -40~185°F -40°C~85°C
Published 2001
Series P13-xx23
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 30mOhm
Gender Male
Current Rating 3A
Contact Resistance 30mOhm
Body Plating Gold
Tip - Type Spear Head
Quantity 1 Piece
Connection Type Sleeve S13-503
Dimensions
Length 16.35mm
Length - Overall 0.644 16.35mm
Length - Tip 0.132 3.35mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
