7317
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Connectors, Interconnects / Terminals - Solder Lug Connectors
Description

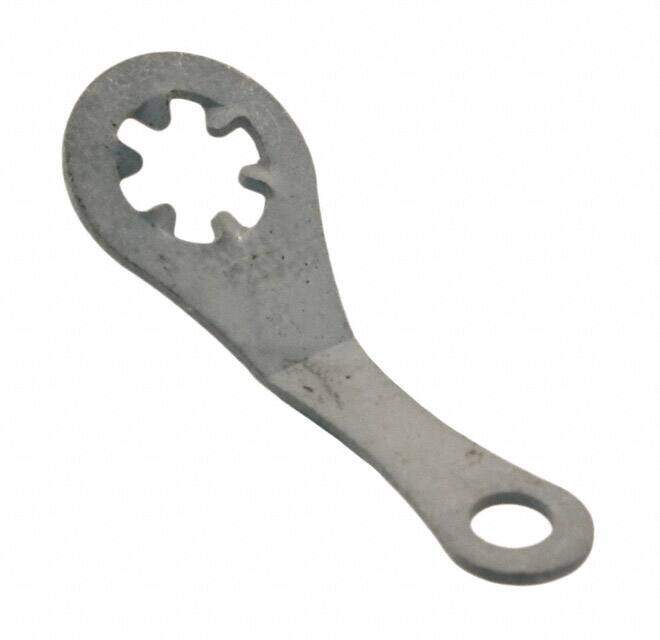

CONN TERM LUG LOCKWASHR #4 ANGLE
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2112
≥1 USD $0.2112
≥10 USD $0.168256
≥100 USD $0.13684
≥500 USD $0.125558
≥1000 USD $0.115755
≥3000 USD $0.094714
Inventory: 1183
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length - Overall 0.812 20.62mm
Thickness 457μm
Width 7.95mm
Length 20.6248mm
Diameter 3.048mm
Technical
Stud/Tab Size 4 Stud
Hole Diameter 0.093 (2.36mm)
Terminal Type Long Stem, Shaped
Insulation Non-Insulated
Terminal and Terminal Block Type WIRE TERMINAL
Contact Finish Tin
Style Lockwasher, Internal Tooth
HTS Code 8536.90.40.00
ECCN Code EAR99
Termination Lug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Bulk
Physical
Package / Case 120
Mounting Type Angled
Mount Stud
Contact Material Brass
Supply Chain
Factory Lead Time 6 Weeks
