7461104
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminals - Screw Connectors
Description

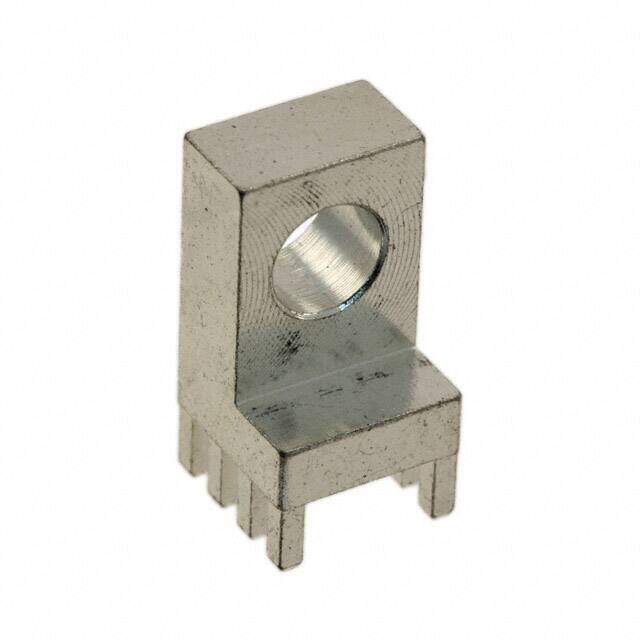

TERM PWR ELEMENT 8 PIN PCB RA
PDF
/
Buying Options
Total Price: USD $17.64
Unit Price: USD $17.643078
≥1 USD $17.643078
≥10 USD $7.039452
≥100 USD $6.804711
≥500 USD $6.688035
Inventory: 904
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 8
Technical
Series REDCUBE WP-RATR
Feature Screw not Included
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit
Max Operating Temperature 135°C
Min Operating Temperature -40°C
Number of Rows 2
Current Rating (Amps) 160A
Current Rating 80A
Number of Contacts 8
Insulation Non-Insulated
Terminal Type Screw Terminal, Power Tap
Dimensions
Height 17.5mm
Length 9mm
Width 9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
