0193230010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminals - Ring Connectors
Description

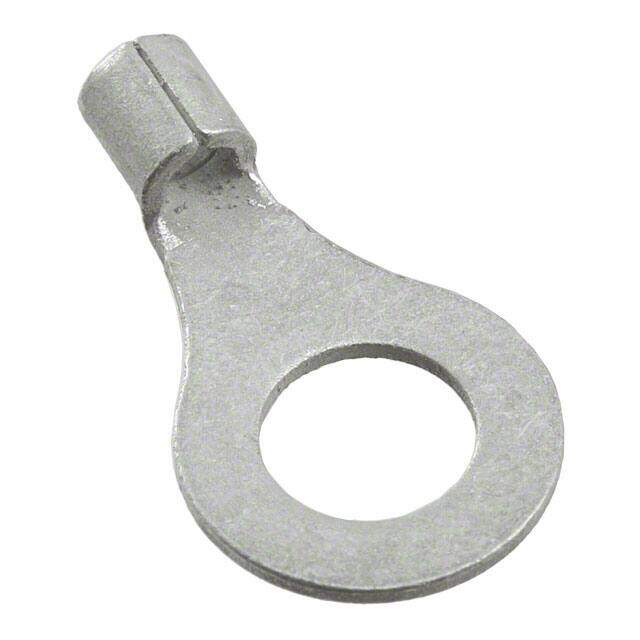

CONN RING CIRC 1.5-2.5MM M6
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
≥10 USD $0.26048
≥100 USD $0.202488
≥500 USD $0.169734
Inventory: 1948
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width - Outer Edges 0.467 11.86mm
Thickness 0.031 0.79mm
Technical
Stud/Tab Size M6 Stud
Terminal Type Circular
Insulation Non-Insulated
Terminal and Terminal Block Type RING TERMINAL
Wire Gauge 1.5 ~ 2.5mm2
Contact Finish Tin
Reach Compliance Code unknown
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Brazed Seam
Series VersaKrimp
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Contact Material Copper
Supply Chain
Factory Lead Time 5 Weeks
