0192210243
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminals - Ring Connectors
Description

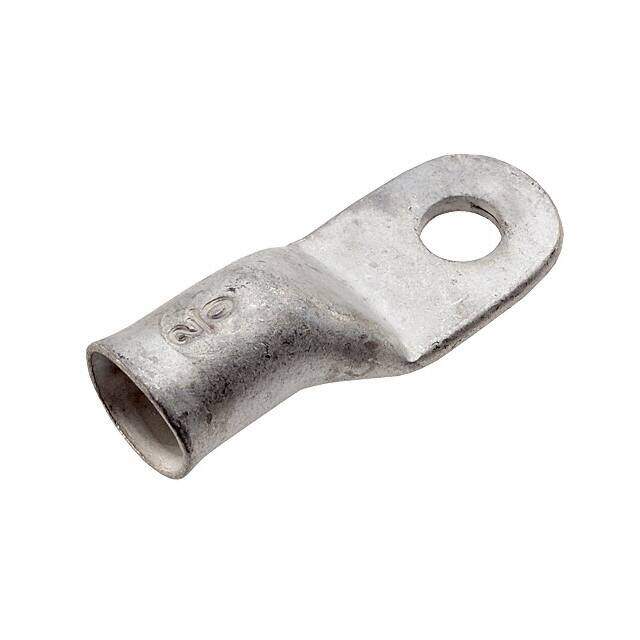

Lug Terminal (2/0)AWG 52.37mm 20.65mm Tin Box
PDF
/
Buying Options
Total Price: USD $3.2
Unit Price: USD $3.2032
≥1 USD $3.2032
≥10 USD $2.816
≥100 USD $2.239776
≥500 USD $1.855814
≥1000 USD $1.727827
Inventory: 14344
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Feature Heavy Duty
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
HTS Code 8536.90.40.00
Contact Finish Tin
Wire Gauge 2/0 AWG
Terminal and Terminal Block Type RING TERMINAL
Insulation Non-Insulated
Terminal Type Flat Sided, Tubular (Battery Lugs)
Wire Cross Section 76.2 mm2
Stud/Tab Size 5/16 Stud
Dimensions
Thickness 0.110 2.79mm
Length - Overall 2.062 52.37mm
Width - Outer Edges 0.813 20.65mm
Compliance
RoHS Status ROHS3 Compliant
