0190710225
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminals - Ring Connectors
Description

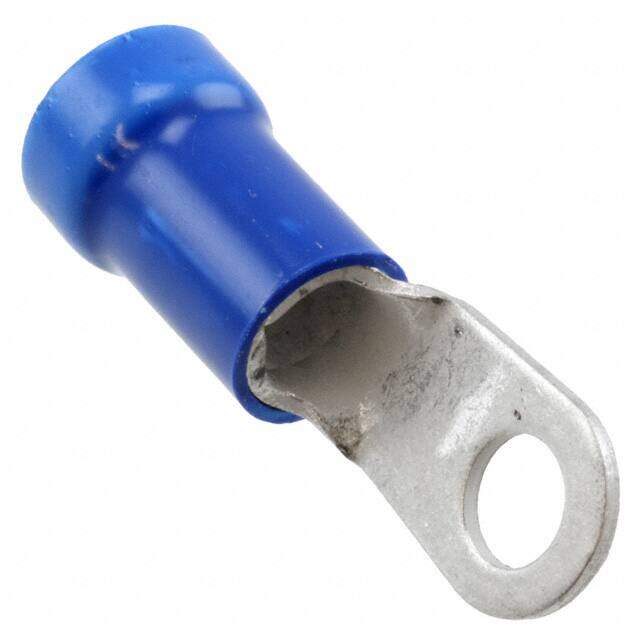

CONN RING CIRC 6AWG #1/4 CRIMP
PDF
/
Inventory: 5649
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Contact Finish Electro-Tin
Wire Gauge 6 AWG
Terminal and Terminal Block Type RING TERMINAL
Insulation Diameter 0.440 (11.18mm)
Insulation Insulated
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Color Blue
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series InsulKrimp
Packaging Bulk
Dimensions
Thickness 0.050 1.27mm
Length - Overall 1.596 40.54mm
Width - Outer Edges 0.485 12.32mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Material - Insulation Poly-Vinyl Chloride (PVC)
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
