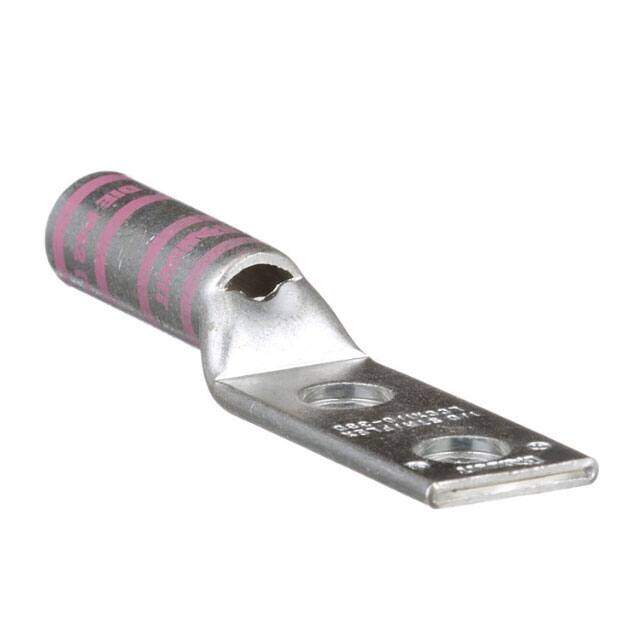

LCCX1/0-38D-X
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminals - Rectangular Connectors
Description
Lug Terminal (1/0)AWG 93.2mm 21.6mm Tin
PDF
/
Buying Options
Total Price: USD $11.5
Unit Price: USD $11.5016
≥1 USD $11.5016
≥10 USD $11.18832
≥100 USD $10.877856
≥500 USD $10.56704
≥1000 USD $10.256136
≥3000 USD $9.945373
Inventory: 90
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Diameter - Ring ID 0.410 (10.41mm)
Diameter - Barrel OD 0.580 (14.73mm)
Diameter - Barrel ID 0.450 (11.43mm)
Tab Thickness 0.130 3.30mm
Width - Outer Edges 0.850 21.59mm
Length - Overall 3.670 93.22mm
Length 93.218mm
Technical
Terminal Style Two Stud Holes
Stud/Tab Size 3/8 Stud
Terminal Type Rectangular Tongue
Insulation Non-Insulated
Terminal and Terminal Block Type WIRE TERMINAL
Body Plating Tin
Wire Gauge 1/0 AWG
Contact Finish Electro-Tin
Depth 21.6mm
HTS Code 8536.90.40.00
Color Pink
ECCN Code EAR99
Termination Crimp, Barrel
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Pan-Lug?
Published 2004
Packaging Bulk
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 4 Weeks
