RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminals - Knife Connectors
Description

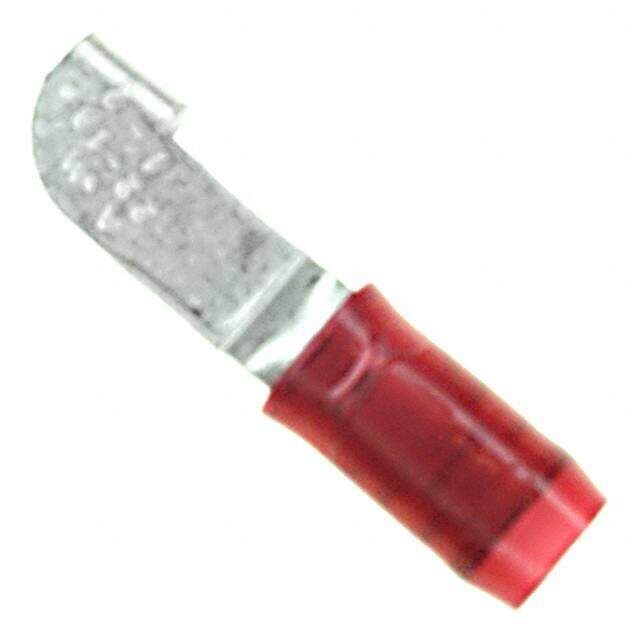

CONN KNIFE TERM 16-22 AWG RED
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.1352
≥1 USD $1.1352
≥10 USD $1.05952
≥100 USD $1.019744
≥500 USD $1.009888
≥1000 USD $0.911416
≥3000 USD $0.881866
Inventory: 978
Minimum: 1
-
+
Technical Details
Technical
HTS Code 8536.90.40.00
Gender Male
Color Red
ECCN Code EAR99
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series PIDG
Published 2006
Packaging Bulk
Insulated Wire Support Yes
Wire/Cable Diameter 3.18 mm
Insulation Insulated
Insulation Diameter 0.080 ~ 0.125 (2.03mm ~ 3.18mm)
Terminal and Terminal Block Type WIRE TERMINAL
Sealable No
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 22 AWG
Plating Copper
ELV Compliant
Wire Gauge 16-22 AWG
Depth 5.15mm
Orientation Straight
Physical
Material - Insulation Polyamide (PA), Nylon
Contact Plating Tin
Contact Material Copper
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 18 Weeks
Compliance
Lead Free Not Applicable
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Stack Height (Mating) 0.203 5.16mm
Length - Overall 0.878 22.30mm
Thickness 787.4μm
Width 5.15mm
Length 22.3mm
