3240015 image
Favorite
3240015 image
Favorite
RoHS
RoHS RoHS compliant
Package 100
Category Connectors, Interconnects / Terminals - Knife Connectors

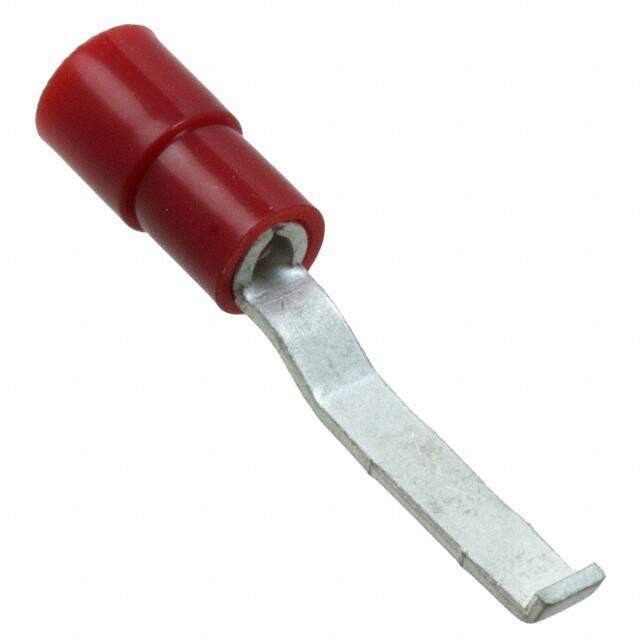

Description Terminals Flat pin cbl lug,red 0.5 - 1.5 mm2
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.39248
≥100 USD $0.381392
≥500 USD $0.3564
≥1000 USD $0.327888
≥3000 USD $0.302931
Inventory: 111
Minimum: 1
-
+

Technical Details

Technical

Insulation Insulated
Stripping Length 7mm
Terminal and Terminal Block Type TAB TERMINAL
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 20 AWG
Wire Gauge 16-20 AWG
Lead Length 17.5mm
Contact Finish Tin
HTS Code 8536.90.40.00
Gender Male
Color Red
Min Operating Temperature -20°C
Max Operating Temperature 105°C
ECCN Code EAR99
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CLIPLINE
Published 2011
Packaging Bulk

Dimensions

Length 27.9908mm
Length - Overall 1.102 28.00mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free

Physical

Material - Insulation Plastic
Package / Case 100
Contact Material Copper

Supply Chain

Factory Lead Time 4 Weeks
