RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Strips and Turret Boards
Description

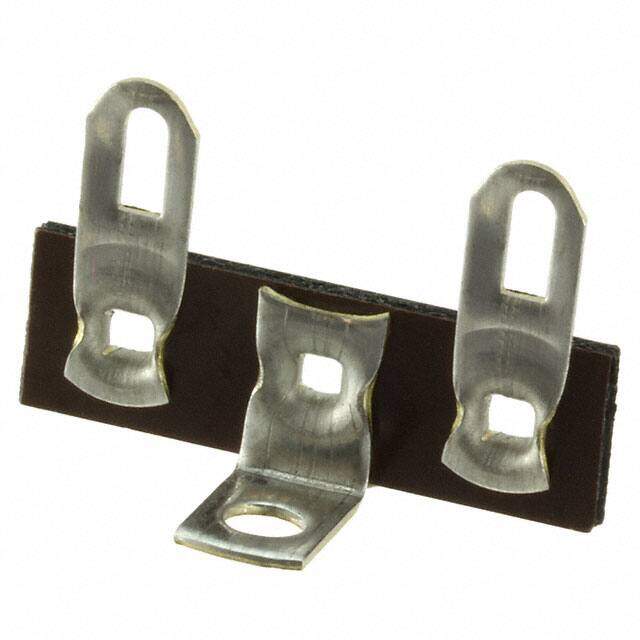

KEYSTONE 810 LUG TERMINAL STRIP, 3 POSITION, 9.5MM
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
≥10 USD $0.556864
≥100 USD $0.510312
≥500 USD $0.482944
Inventory: 4228
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 9.525mm
Technical
Board Size 1.125Lx0.375W x 0.062 H 28.58mmx9.53mmx1.57mm
Hole Diameter 3.556 mm
Terminal Type Terminal Lug, Single End
Insulation Non-Insulated
Number of Poles 3
Contact Finish Tin
Pitch 0.375 9.53mm
Number of Rows 1
Number of Positions 3 (2 + 1 Ground)
Type Terminal Lug Strip
Connector Type Lug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Standard Strip
Physical
Material - Board XP Phenolic
Mounting Hole Diameter 0.140 (3.56mm)
Contact Material Brass
Supply Chain
Factory Lead Time 6 Weeks
