691137710004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

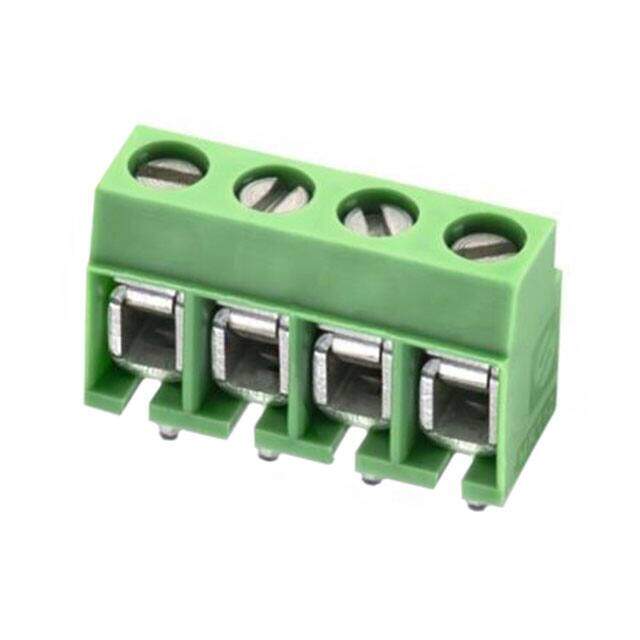

TERM BLK 4POS SIDE ENTRY 5MM PCB
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.718174
≥1 USD $0.718174
≥10 USD $0.702477
≥100 USD $0.692011
Inventory: 13
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 35 Weeks
Physical
Mounting Type Through Hole
Number of Pins 4
Housing Material Polycarbonate (PC)
Contact Material - Plating Copper Alloy - Nickel Plated
Clamp Material - Plating Copper Alloy
Screw Material - Plating Zinc Plated
Technical
Operating Temperature -30°C~120°C
Packaging Bulk
Series WR-TBL Series 1377
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Green
Pitch 0.197 5.00mm
Lead Pitch 5mm
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 1
Current 16A
Torque - Screw 0.4 Nm (3.5 Lb-In)
Positions Per Level 4
Mating Orientation Horizontal with Board
Wire Termination Screw - Leaf Spring, Wire Guard
Screw Thread M2.5
Compliance
RoHS Status ROHS3 Compliant
