9500760000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

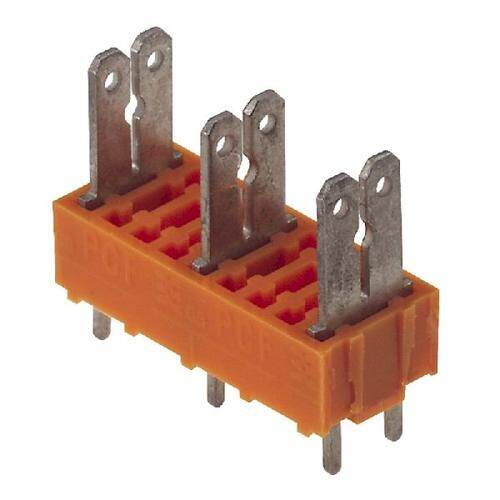

PA UL 94V-2 Wire Board Terminal Block
PDF
/
Inventory: 5522
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material CuSn
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Copper Alloy - Tin Plated
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2008
Series Omnimate PCF
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Color Orange
Number of Rows 1
Voltage - Rated 300V
Additional Feature PA, UL 94V-2
Pitch 0.394 10.00mm
Current Rating 15A
Approval Agency CSA, UR
Number of Levels 1
Number of Poles 3
Number of Decks 1
Terminal and Terminal Block Type STRIP TERMINAL BLOCK
Positions Per Level 3
Number of Ways 3
Safety Approval UL; CSA; IEC
Mating Orientation Vertical with Board
Wire Termination Quick Connect, Disconnect
Hole Diameter 1.3 mm
Fastening Method SOLDER
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
