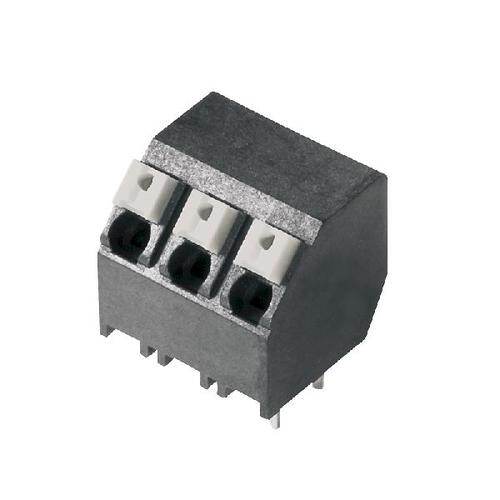

1888660000 image
Favorite
1888660000 image
Favorite

1888660000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Wire Board Terminal Block
PDF
/
Buying Options
Total Price: USD $3.86
Unit Price: USD $3.855987
≥1 USD $3.855987
≥190 USD $1.538719
≥570 USD $1.487516
≥950 USD $1.462571
Inventory: 7825
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Fastening Method PUSH-ON
Stripping Length 8mm
Hole Diameter 1.1 mm
Wire Termination Screwless - Push Button Clamp
Mating Orientation 45° (135°) Angle with Board
Safety Approval UL; CSA
Number of Ways 4
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Wire Gauge 16-24 AWG
Number of Contacts 4
Approval Agency CSA, cURus
Current Rating 10A
Pitch 0.197 5.00mm
Voltage - Rated 300V
Number of Rows 1
Color Black
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Omnimate LSF-SMT
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -50°C~240°C

Physical

Contact Material - Plating Copper Alloy - Tin Plated
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 12 Weeks
