1047150000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

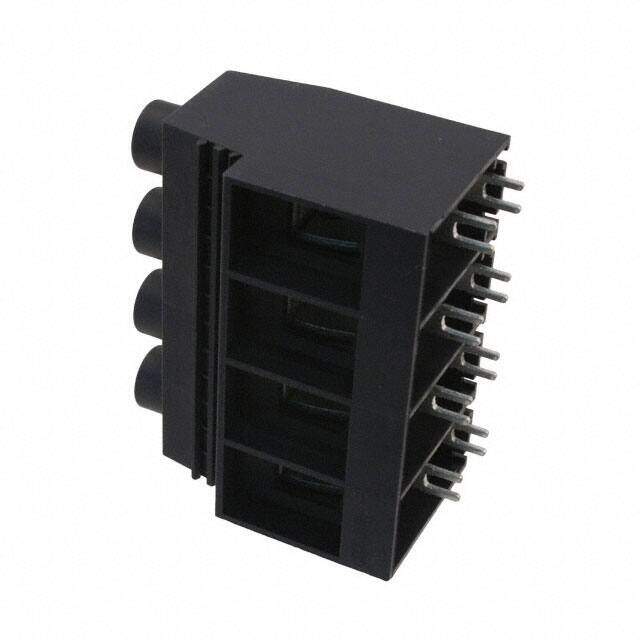

TERM BLK 4P SIDE ENTRY 15MM PCB
PDF
/
Buying Options
Total Price: USD $14.34
Unit Price: USD $14.3352
≥1 USD $14.3352
≥10 USD $13.76408
≥100 USD $13.28595
≥500 USD $12.808048
≥1000 USD $12.425688
≥3000 USD $12.186768
Inventory: 51
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Thermoplastic, Wemid
Contact Material - Plating Copper Alloy - Tin Plated
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Published 2011
Series Omnimate LXXX
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Color Black
Voltage - Rated 600V
Pitch 0.591 15.00mm
Current Rating 127A
Approval Agency CSA, UR
Wire Gauge 1-20 AWG
Number of Levels 1
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 1 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 2.5-4 Nm (22.1-35.4 Lb-In)
Positions Per Level 4
Mating Orientation Horizontal with Board
Wire Termination Screw - Clamping Yoke, Tension Sleeve
Screw Thread M6
Hole Diameter 1.6 mm
Number of Positions Per Level 4
Stripping Length 18mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
