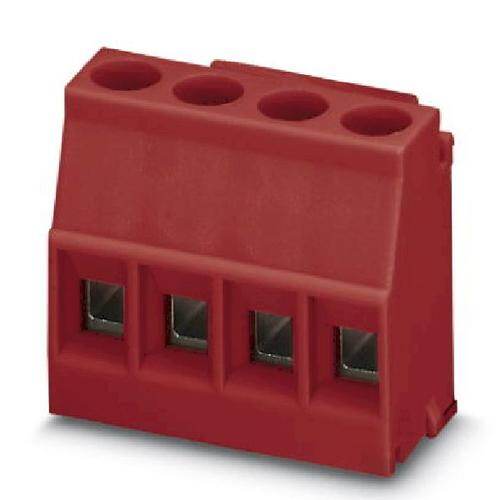

2909400
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Wire Board Terminal Block
PDF
/
Inventory: 1112
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 7.679999g
Technical
Packaging Bulk
Published 2011
Series COMBICON MKDSO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Color Red
Voltage - Rated 320V
Pitch 0.197 5.00mm
Current Rating 24A
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Terminal and Terminal Block Type STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level 4
Safety Approval UL; VDE; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Fastening Method SOLDER
Dimensions
Height 19.95mm
Length 15.3mm
Width 21.25mm
Compliance
RoHS Status RoHS Compliant
