2908045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

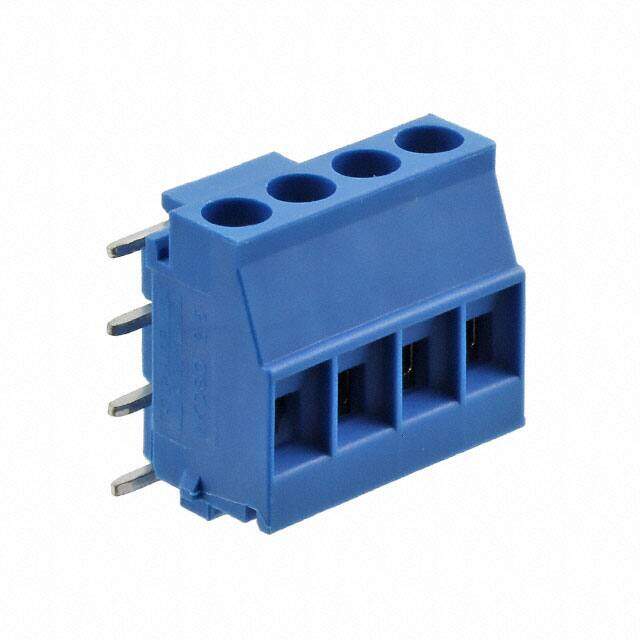

Screw terminal 2.50 mm2 Number of pins 4 MKDSO 2,5/ 4-R BU Phoen
PDF
/
Inventory: 1245
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 7.610004g
Technical
Packaging Bulk
Published 2011
Series COMBICON MKDSO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Color Blue
Voltage - Rated 320V
Pitch 0.197 5.00mm
Reach Compliance Code not_compliant
Current Rating 24A
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 1
Current 20A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level 4
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Dimensions
Height 19.95mm
Length 15.3mm
Width 21.25mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
