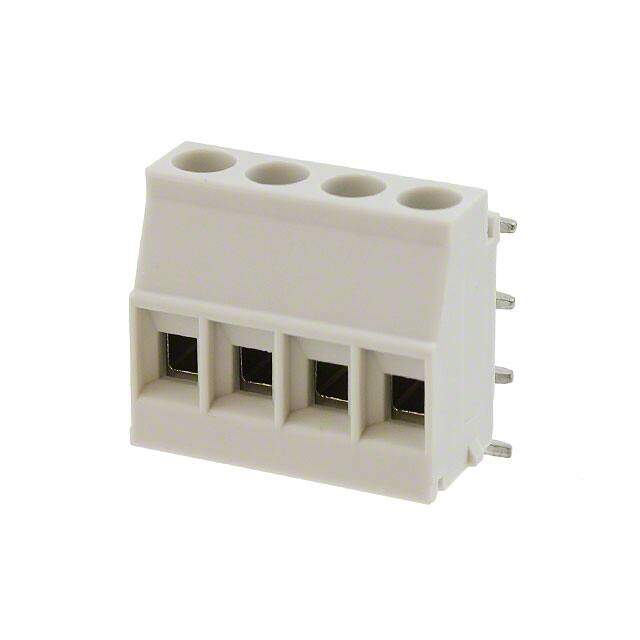

2713751
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Fixed Terminal Blocks MKDSO2.5/4-6 SETKMGY PCB CONN SYS 1-4POS
PDF
/
Buying Options
Total Price: USD $28.34
Unit Price: USD $28.336
≥1 USD $28.336
≥10 USD $26.07088
≥100 USD $24.087184
≥500 USD $22.953656
≥1000 USD $21.646909
Inventory: 30
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA66), Nylon 6/6
Weight 48.600013g
Technical
Packaging Bulk
Published 2006
Series COMBICON MKDSO
Feature Set (6)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Number of Positions 24
Color Gray
Number of Rows 3
Voltage - Rated 300V
Pitch 0.098 2.50mm
Reach Compliance Code not_compliant
Current Rating 10A
Wire Gauge 12-30 AWG
Number of Levels 1
Current 20A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 3
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Positions Per Level 4
Number of Ways 24
Safety Approval UL; CSA
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Wire Cross Section 2.5 mm2
Dimensions
Height 19.95mm
Length 15.3mm
Width 21.25mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
