1995664
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

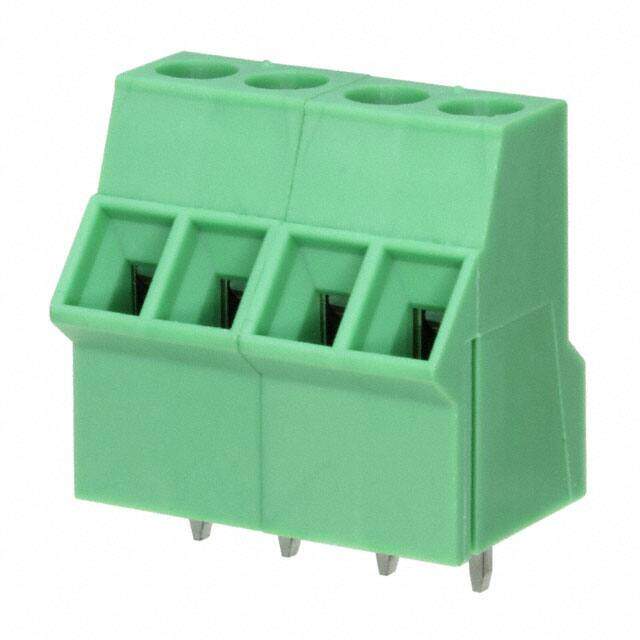

Fixed Terminal Blocks SMKDS 2.5/ 4-5.08
PDF
/
Buying Options
Total Price: USD $3.3
Unit Price: USD $3.3
≥1 USD $3.3
≥10 USD $3.212
≥100 USD $3.00168
≥500 USD $2.761528
≥1000 USD $2.709837
Inventory: 276
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 14.25mm
Technical
Screw Thread M3
Wire Termination Screw - Rising Cage Clamp
Mating Orientation 45° (135°) Angle with Board
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Wire Gauge 12-30 AWG
Current Rating 20A
Reach Compliance Code not_compliant
Pitch 0.200 5.08mm
Voltage - Rated 400V
Color Green
Number of Positions 4
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Interlocking (Side)
Series COMBICON SMKDS
Published 2010
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
