1995046
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

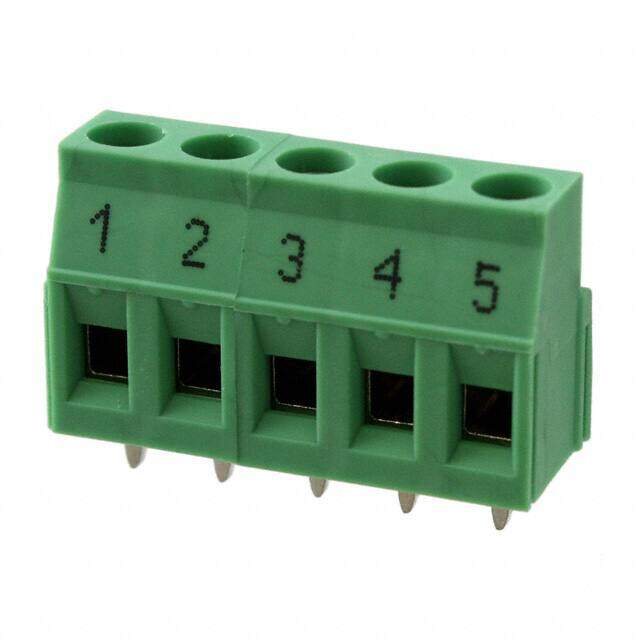

TERM BLK 5P SIDE ENT 5.08MM PCB
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.0064
≥1 USD $2.0064
Inventory: 126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 165.000008g
Technical
Packaging Bulk
Published 2010
Series COMBICON MKDSN
Feature Interlocking (Side), Positions Stamped
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Voltage - Rated 400V
Pitch 0.200 5.08mm
Reach Compliance Code unknown
Current Rating 16A
Wire Gauge 12-30 AWG
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Safety Approval UL; VDE
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M3
Number of Positions Per Level 5
Compliance
RoHS Status RoHS Compliant
