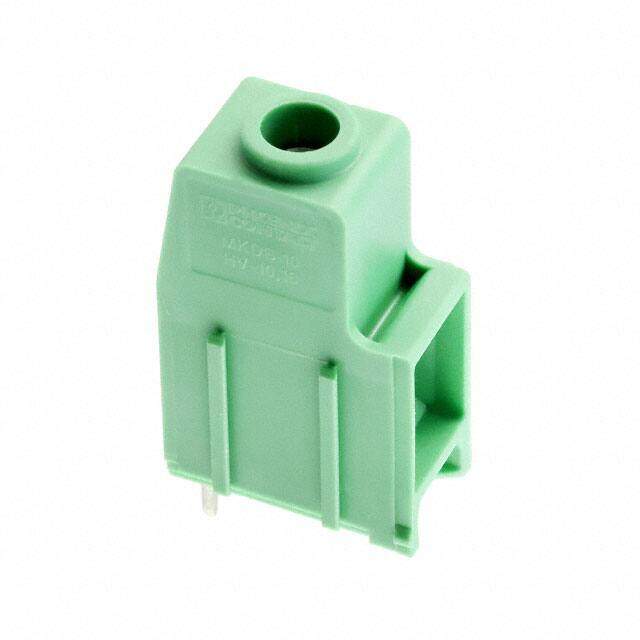

1993763 image
Favorite
1993763 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Conn PC Terminal Block 1 POS Solder ST Thru-Hole 76A
PDF
/
Buying Options
Total Price: USD $7.53
Unit Price: USD $7.52812
≥1 USD $7.52812
≥10 USD $7.102
≥100 USD $6.7
Inventory: 190
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 8.580012g

Technical

Packaging Bulk
Published 2010
Series COMBICON MKDS
Feature Interlocking (Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Number of Positions 1
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 10.16mm
Depth 31mm
Current Rating 76A
Wire Gauge 6-20 AWG
Voltage 300V
Current 60A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways 1
Safety Approval UL
Mating Orientation Horizontal with Board
Wire Termination Screw - Rising Cage Clamp
Screw Thread M4

Dimensions

Length 18.8mm

Compliance

RoHS Status RoHS Compliant
