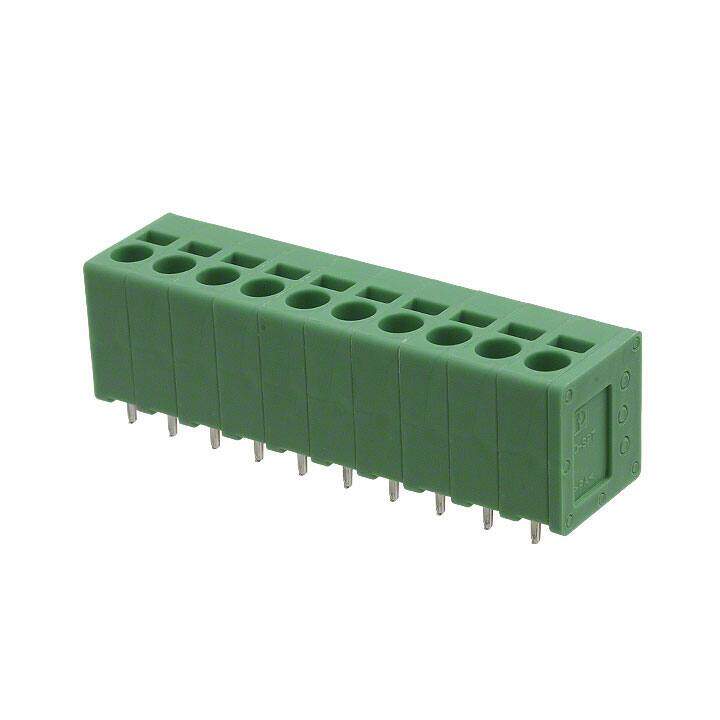

1991176 image
Favorite
1991176 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Conn PC Terminal Block 10 POS 5mm Solder ST Thru-Hole 24A
PDF
/
Buying Options
Total Price: USD $3.51
Unit Price: USD $3.5112
≥1 USD $3.5112
≥10 USD $3.41528
≥100 USD $3.19176
≥500 USD $2.936472
≥1000 USD $2.881437
Inventory: 425
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 51.4mm
Length 13.5mm
Height 16.9mm

Technical

Fastening Method SPRING LOADED
Wire Cross Section 4 mm2
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Vertical with Board
Safety Approval UL
Number of Ways 10
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 20A
Number of Levels 1
Max Current Rating 24A
Voltage 300V
Wire Gauge 12-24 AWG
Number of Contacts 10
Current Rating 24A
Reach Compliance Code unknown
Depth 13.5mm
Orientation Straight
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SPT
Published 2011
Packaging Bulk

Physical

Weight 15.446011g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
