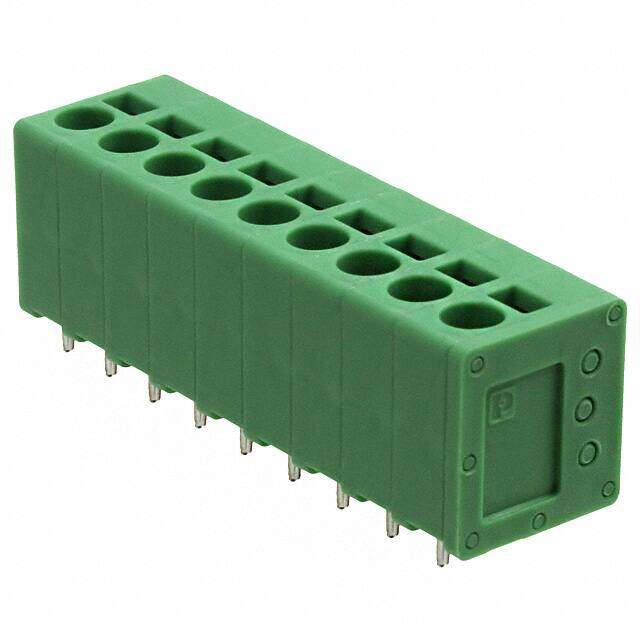

1991163
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description
Conn Spring Cage 9 POS 5mm Solder ST Thru-Hole 24A
PDF
/
Buying Options
Total Price: USD $3.16
Unit Price: USD $3.1592
≥1 USD $3.1592
≥10 USD $3.07648
≥100 USD $2.917376
Inventory: 1154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 12.060001g
Technical
Packaging Bulk
Published 2011
Series COMBICON SPT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Color Green
Number of Rows 1
Voltage - Rated 400V
Pitch 0.197 5.00mm
Orientation Straight
Depth 13.5mm
Reach Compliance Code unknown
Current Rating 24A
Number of Contacts 9
Wire Gauge 12-24 AWG
Voltage 300V
Max Supply Voltage 250V
Max Current Rating 24A
Number of Levels 1
Current 20A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 9
Safety Approval UL
Mating Orientation Vertical with Board
Wire Termination Screwless - Spring Cage, Tension Clamp
Wire Cross Section 4 mm2
Fastening Method SPRING LOADED
Dimensions
Length 46.4mm
Width 14.4mm
Compliance
RoHS Status RoHS Compliant
