1991105
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

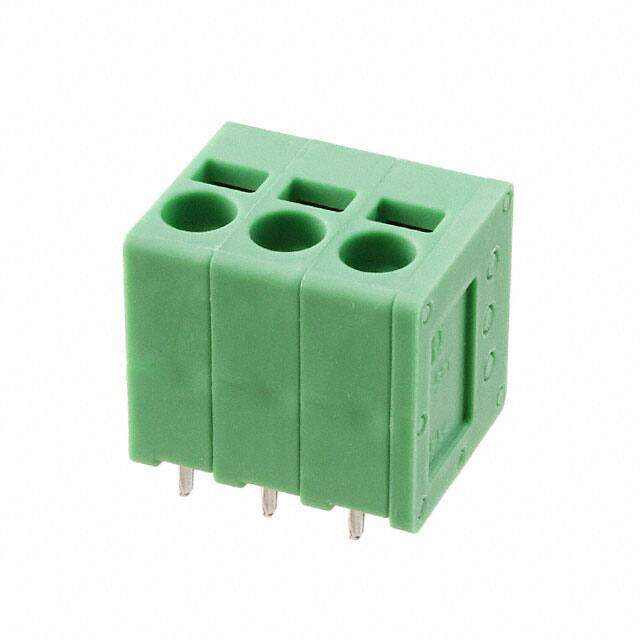

Conn PC Terminal Block 3 POS 5mm Solder ST Thru-Hole 24A
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.1088
≥1 USD $1.1088
≥10 USD $1.06304
≥100 USD $1.049488
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 14.4mm
Length 16.4mm
Height 16.4mm
Technical
Fastening Method SPRING LOADED
Wire Cross Section 4 mm2
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Vertical with Board
Safety Approval UL
Number of Ways 3
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 20A
Number of Levels 1
Max Current Rating 24A
Voltage 300V
Wire Gauge 12-24 AWG
Number of Contacts 3
Approval Agency CB, UL
Current Rating 24A
Depth 13.5mm
Orientation Straight
Pitch 0.197 5.00mm
Additional Feature PA, UL 94V-0
Voltage - Rated 400V
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SPT
Published 2012
Packaging Bulk
Physical
Weight 4.160009g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
