1990834
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

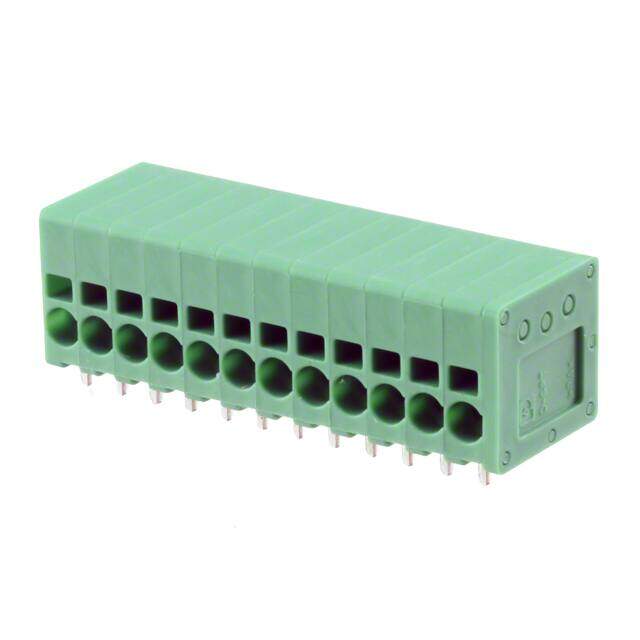

Fixed Terminal Blocks SPT 1.5/12-H-3.5 3.5MM 12P HORZ SPR
PDF
/
Buying Options
Total Price: USD $5.64
Unit Price: USD $5.6408
≥1 USD $5.6408
≥10 USD $5.48328
≥100 USD $5.12424
≥500 USD $4.714336
≥1000 USD $4.626054
Inventory: 37
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 13.5mm
Length 43.4mm
Technical
Fastening Method SPRING LOADED
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 12
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1
Voltage 300V
Wire Gauge 16-24 AWG
Current Rating 17.5A
Reach Compliance Code unknown
Depth 14.4mm
Orientation Right Angle
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 200V
Number of Rows 1
Color Green
Number of Positions 12
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SPT
Published 2011
Packaging Bulk
Physical
Weight 11.079986g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
