1990740
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description

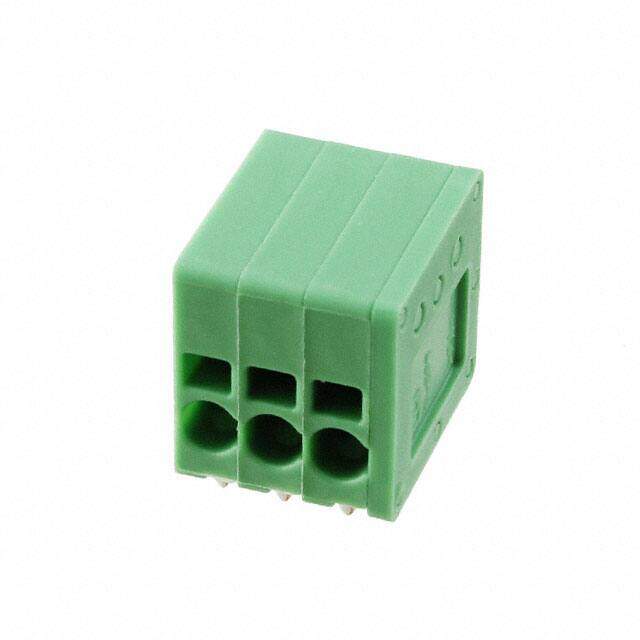

Fixed Terminal Blocks SPT 1.5/ 3-H-3.5 3.5MM 3P HORZ SPR
PDF
/
Buying Options
Total Price: USD $1.62
Unit Price: USD $1.6192
≥1 USD $1.6192
≥10 USD $1.5488
≥100 USD $1.50656
≥500 USD $1.408
≥1000 USD $1.29536
≥3000 USD $1.1968
Inventory: 527
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 3.033994g
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 13.5mm
Length 14.4mm
Technical
Fastening Method SPRING LOADED
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation Horizontal with Board
Safety Approval UL
Number of Ways 3
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 24 AWG
Current 10A
Number of Levels 1
Max Current Rating 17.5A
Voltage 300V
Wire Gauge 16-24 AWG
Number of Contacts 3
Approval Agency CB, UL
Current Rating 17.5A
Depth 14.4mm
Orientation Right Angle
Pitch 0.138 3.50mm
Additional Feature PA, UL 94V-0
Voltage - Rated 200V
Number of Rows 1
Color Green
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON SPT
Published 2012
Packaging Bulk
