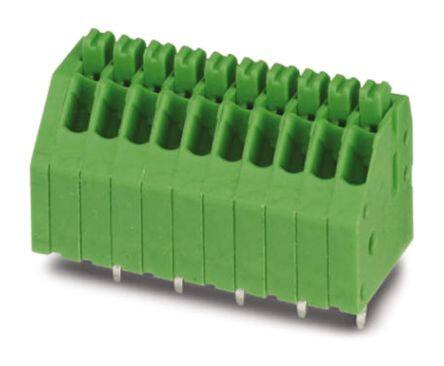

1990229 image
Favorite
1990229 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Wire to Board
Description Fixed Terminal Blocks PTSA 0.5/23-2.5-Z 23P 2.5MM 45DEG
PDF
/
Inventory: 1262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 12mm
Length 12mm
Height 11.5mm

Technical

Fastening Method SPRING LOADED
Wire Cross Section 0.5 mm2
Wire Termination Screwless - Spring Cage, Tension Clamp
Mating Orientation 45° (135°) Angle with Board
Safety Approval UL
Number of Ways 23
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 26 AWG
Number of Levels 1
Voltage 300V
Wire Gauge 20-26 AWG
Current Rating 2A
Depth 13.1mm
Pitch 0.098 2.50mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Number of Positions 23
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PTSA
Published 2005
Packaging Bulk

Physical

Weight 8.779989g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 7 Weeks
